Foil Drive Assist MAX Kit

by Foil Drive • SKU BNDLFDMAX1
Gen2 Motor
Shop with confidence. 30-day Returns and Exchanges Order Tracking Details & FAQs
Free Shipping When you spend $100+ Some exclusions apply Shipping Details
Get help buying. Chat nowSend message or call +1 (252) 987-6000.

Product Information

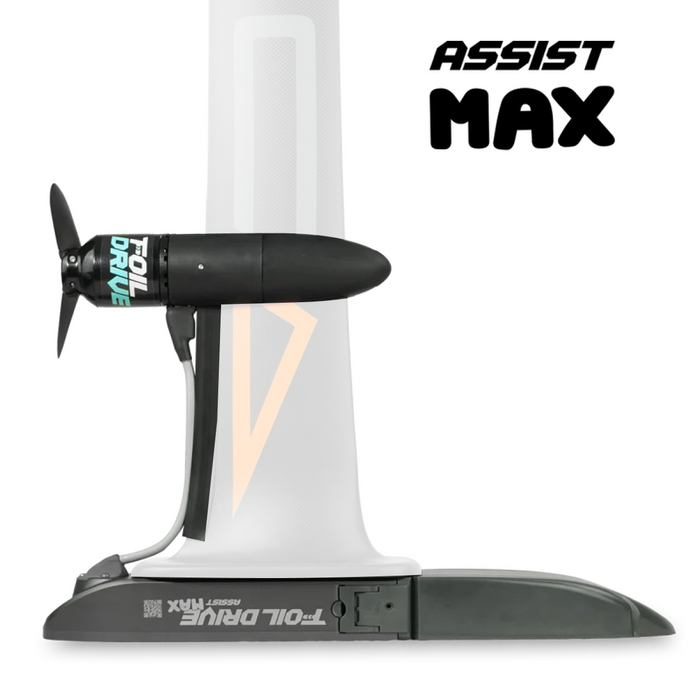

The Foil Drive Assist MAX is the flagship model with maximum power, runtime, thrust and versatility. Suitable for any rider at any skill level for just about any type of foiling you can imagine! The Assist MAX does it all!


It doesn't matter if your surfing, down winding, Winging or in flat Water, the Assist Max is for everyone, however heavier riders and those wanting to just pull the trigger and fly will love the extra run time and thrust.

If you've been around Foil Drive before, the Assist MAX is for anyone who loves the runtime of the Assist PLUS and is keen on more power and more runtime! If you're new to Foil Drive, the MAX is the perfect all rounder!


Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.


With three simple screws, the motor plug can be removed, allowing the rider to change their cable length and therefore motor mounting position depending on the use case.

With options to use your own foil mast or a fully integrated option, there are more ways to tune your setup than ever!


Now included in all Foil Drive kits

The unique design features a number of six sized "keys" that are to be installed into the front of the adaptor to allow for fitment of all different sizes and shapes of mast. The user will need to fit and test the different keys to find the correct one for their mast and the taper of the position you would like to mount your motor.

MAX Power Battery

The largest MAX battery offering the longest run time with high power performance. This battery must be used with the Assist MAX, Nose Cone A.

Volts: 40V

Energy: 498.69Wh

Battery Weight: 2.6kg (5.7lbs)

Weight (Installed): 4.5kg (9.9lbs)

Dimensions (Installed):

L525 x W125 x H50mm

Dimensions (Battery Only):

L420 x W75 x H40mm

MAX Sport Battery

The smaller, pghter MAX battery, with a reduce weight and runtime. This battery must be used with the Assist MAX, Nose Cone B.

Volts: 40v

Energy: 332.64Wh

Battery Weight: 1.8kg (3.9lbs)

Weight (Installed): 3.4kg (7.4lbs)

Dimensions (Installed):

L415 x W125 x H50mm

Dimensions (Battery Only):

L290 x W75 x H40

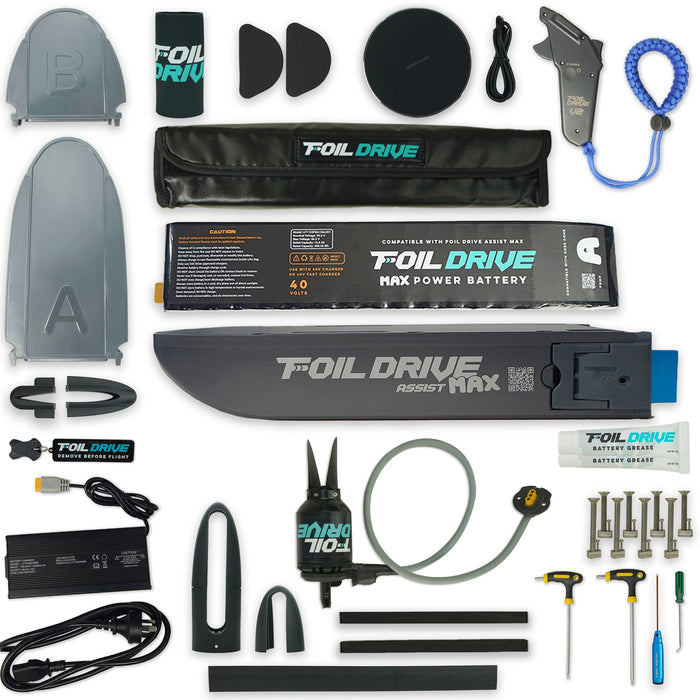

Package Includes:
  • Base Kit (SKU: FD24MAX-100)
    • Universal Mast Adapter
    • Foil Drive Assist MAX Electronics Box
    • Motor Plug Protector with Keychain
    • Foil Drive Nose Cone A
    • Foil Drive Nose Cone B
    • Foil Drive Universal Motor Pod - Rear
    • Foil Drive Universal Motor Pod - Short Nose
    • Foil Drive Universal Motor Pod - Long Nose
    • Foil Drive v2 Wireless Throttle Controller
    • Foil Drive Controller Wrist Strap
    • Foil Drive Mast Cable Guide 23cm
    • Foil Drive Controller Wireless Charge Pad
    • Micro USB Cable
    • 40v Standard Foil Drive Charger 4amp
    • 4x Mast Track Foam Inserts
    • 2x Nose Cone Rocker Pad
    • 2x Battery Grease
    • Foil Drive 2.5mm Driver
    • Torx T40 T Handle Driver
    • Torx T30 T Handle Driver
    • Foil Drive Cleaning Cloth
    • Foil Drive Gen2 Carry Case
    • Hardware Pack

    • Foil Drive Mounting Bolt Bag
      • 4x M8 Locking Tee Nuts
      • 4x M6 Locking Tee Nuts
      • 4x M3 x 20mm Bolts for Locking Tee Nuts
      • 2x M3 x 16mm Latch Locking Bolts

  • 1x Foil Drive MAX Battery
    • MAX Power (SKU: FD24PWRBATT-101)
    • MAX Sport (SKU: FD24SPRTBATT-102)
  • 1x Gen2 Motor
    • 15cm (SKU: FD24MG215-106-1)
    • 20cm (SKU: FD24MG220-106-2)
    • 25cm (SKU: FD24MG225-106-3)
    • 60cm (SKU: FD24MG260-106-4)

Customer Reviews

Based on 2 reviews
Foil Drive has increased my wave count by 100,000%

This Foil Drive Assist MAX Kit is insane! I've been using this for surf foiling and its been incredible. It took me three sessions to really get comfortable and figure out the technique with this. Even if you are a really good foiler, adding the FoilDrive into the mix definitely adds a new element and set of skills to figure out. The transition to up on foil and when to give it more or less throttle takes practice.

I've been using this with an Appletree Pro Foil V2 board (carbon fiber), Armstrong 795 performance mast and mostly with the HA880, HA980, and HA1080 wings. I've used the 20cm cable motor. With the Max Power battery I can get a full hour session being somewhat mindful of battery usage. With the Max Sport its probably 30-40 min max.

The whole kit definitely adds some noticeable weight to your foil setup obviously. It takes a bit to learn how to ride it, and especially pump, with the added weight. Using the Sport battery makes pumping much easier, but with the cost of shorter run time.

Now that I've dialed in how to use this and wing sizing/mast position, I am going out for a session on days where I would normally catch MAYBE one or two waves, really bad conditions, and doing laps wave after wave for an hour straight. Its great going out and getting a ton of time on foil, and a ton of time actively on a wave. I found that its a great form of foil training. I have so much more time on foil that I can practice better technique while wave riding.

Matthew Nuzzo
Amazing foil surfing tool for those that don't know how to surf

This is a very cool tool that you can bolt on to any foil and have power assist. It took me a bit longer than expected to learn as I was trying to paddle into waves, power up and then stand up. After a few failed sessions, I took out my foil drive and learned the "Efoil start" where you go to your knees, then front foot then back foot to get up. This worked way better and I could Efoil around on my prone board.

Next step was learning to hop up on foil. The Foil Drive is a great tool to learn to pump as you can get up and get on foil in the flat and then hop up past the motor pod and pump around. I have gotten a lot better at pumping by training on the foil drive in the flat.

Final step was powering out to a swell and turning on it, then hopping on foil and foil surfing. After a few sessions, I got this dialed. The cool thing is you can surf swells way outside the line up and then power out to a new swell.

The rigging I have really been liking is the 2024 North Swell 42L, Armstrong 795 mast w/ 60fuse, HA1080 and Surf 205 tail.
