Axis Freeride Rear Wing View full product details

Axis Freeride Rear Wing

Shop All Axis

AX22RWING-500/90

$226.00

$226.00 $226.00

Size or Type 500/90 440/90 400/90 500A/90

Delivery Free Shipping

Available on orders of $100 or more. Excludes boards and oversized items.

Shipping details Backed by REAL 30-day returns

Return it or exchange it. Start online, then ship it back.

Details & FAQs

Need help choosing gear?

Talk to a REAL Pro who rides it.

Located in Cape Hatteras. No bots.

From Axis

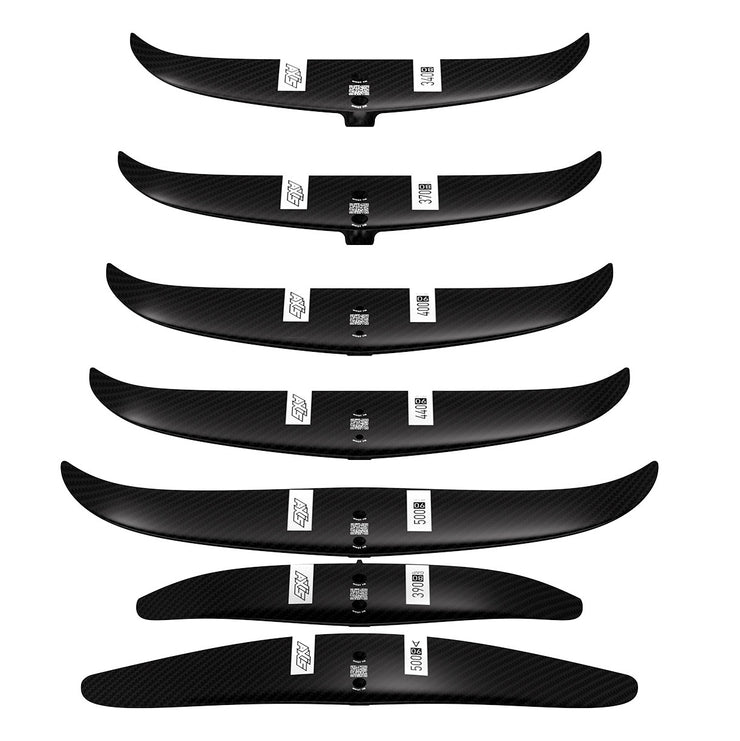

These wider chord wings are the perfect choice for beginner wingers, windsurfers and SUP foilers. The design emphasis is on easy lift, stability and predictable turning. The 440/90, paired with our BSC 1060 front wing, is the popular choice for learning to wing foil.

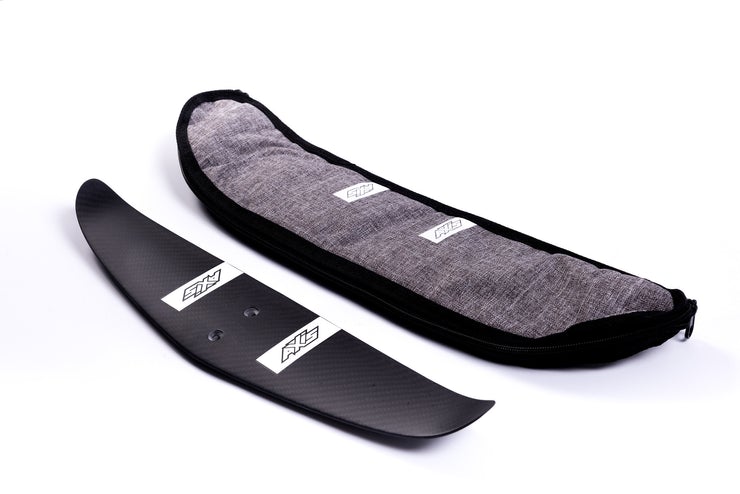

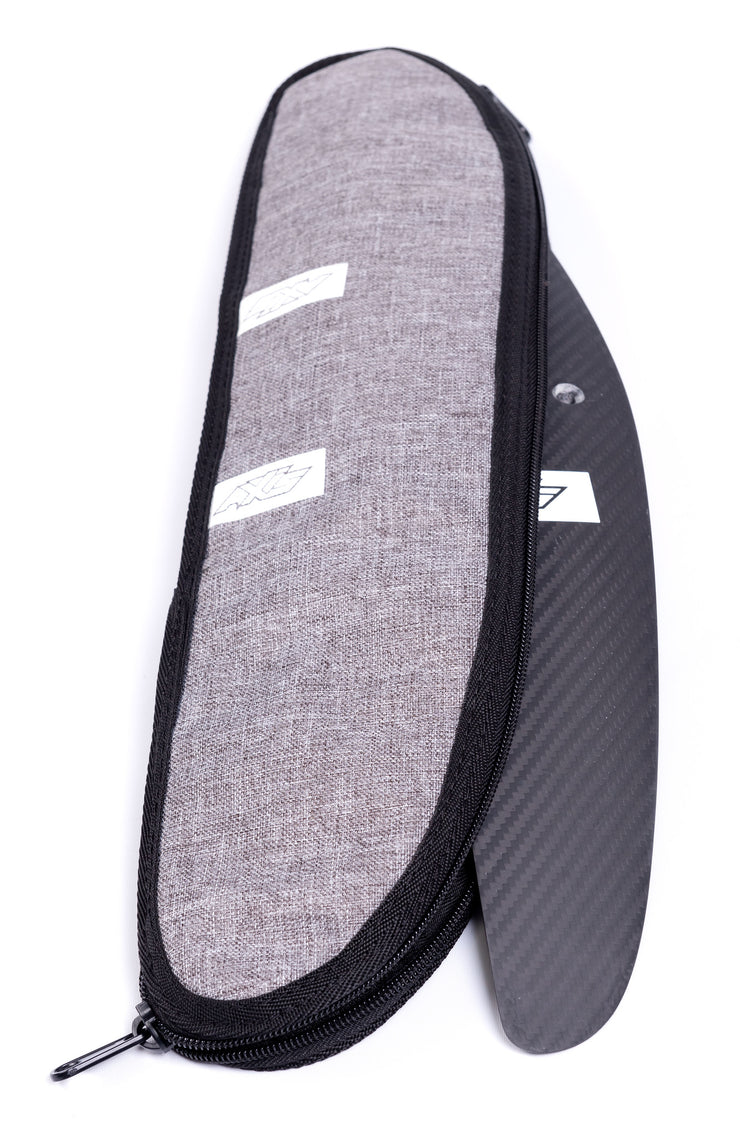

Package Includes

Wing
Wing Cover

Assembly Hardware Sold Separately

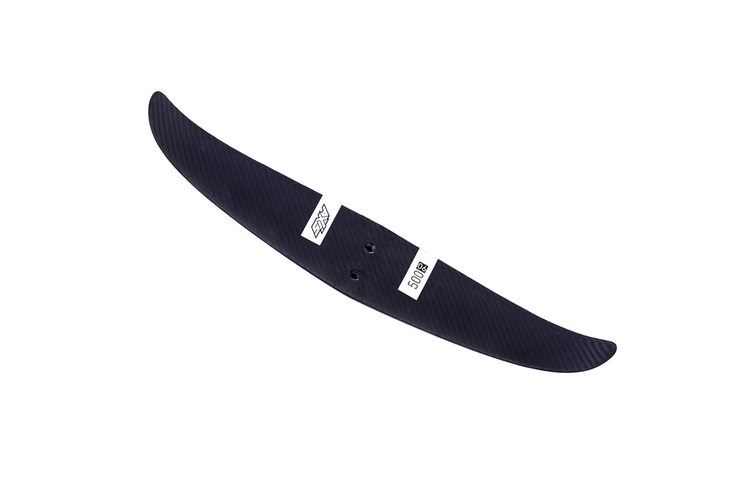

500 Freeride Carbon Rear Wing Technical Data

WINGSPAN: 500 mm / 19.69 in
CHORD: 90 mm / 3.54 in
ASPECT RATIO: 7.3
ACTUAL AREA : 360.77 cm² / 55.92 IN²
PROJECTED AREA: 342.55 cm² / 214.35 IN²
VOLUME: 130.8 cm³ / 8 IN³

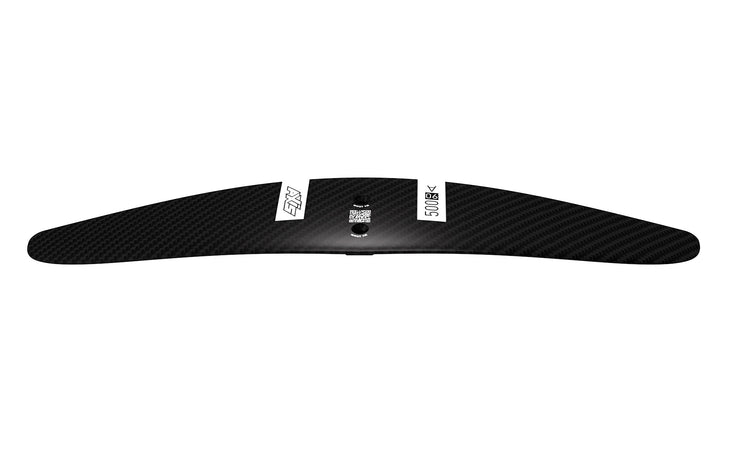

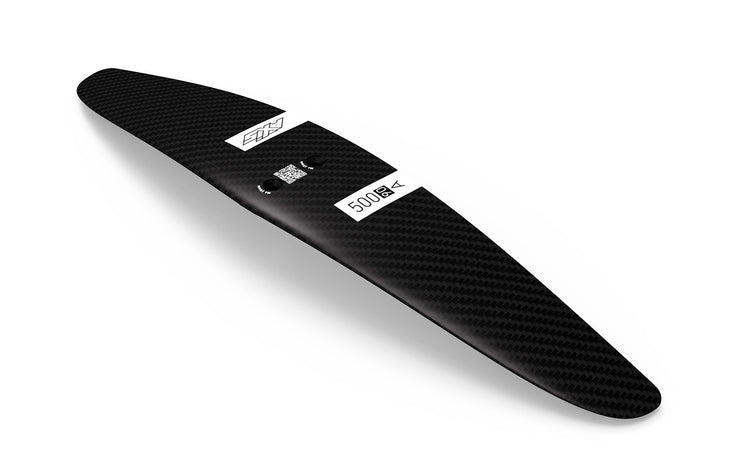

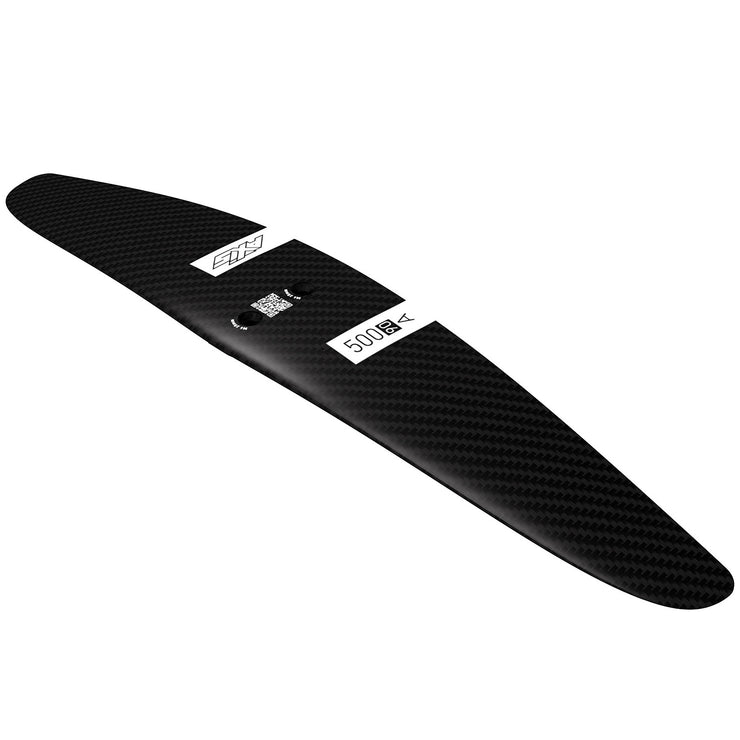

500 Freeride Anhedral Carbon Rear Wing Technical Data (500A/90)

The AXIS 500 Carbon Anhedral Rear Wing, is the ideal rear wing for Wind Foiling. Combined with either the 1020, 1000, 920, 900 or 820, the 500 Anhedral gives you a balanced and stable ride while wind foiling.

WINGSPAN: 500 mm / 19.69 in
CHORD: 90 mm / 3.54 in
ASPECT RATIO: 7.17
ACTUAL AREA : 362.33 cm² / 56.16 IN²
PROJECTED AREA: 348.72 cm² / 54.05 IN²
VOLUME: 223.43 cm³ / 13.63 IN³

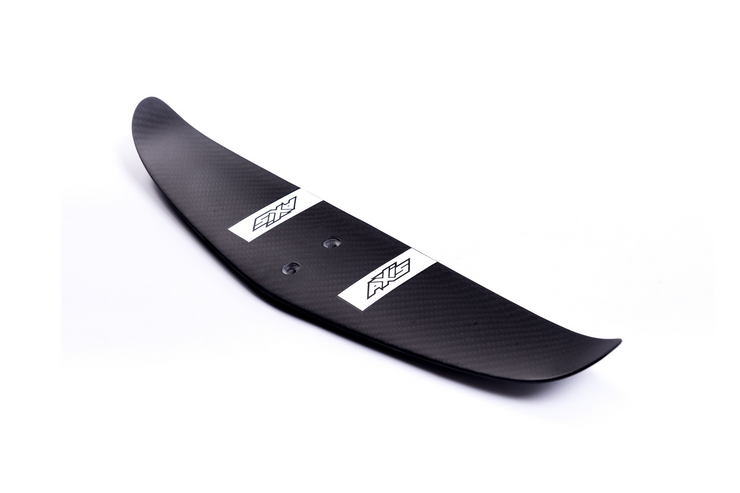

440 Freeride Carbon Rear Wing Technical Data

WINGSPAN: 440 mm / 17.32 in
CHORD: 90 mm / 3.54 in
ASPECT RATIO: 6.37
ACTUAL AREA : 318.94 cm² / 49.44 IN²
PROJECTED AREA: 303.97 cm² / 47.12 IN²
VOLUME: 192.81 cm³ / 4.97 IN³

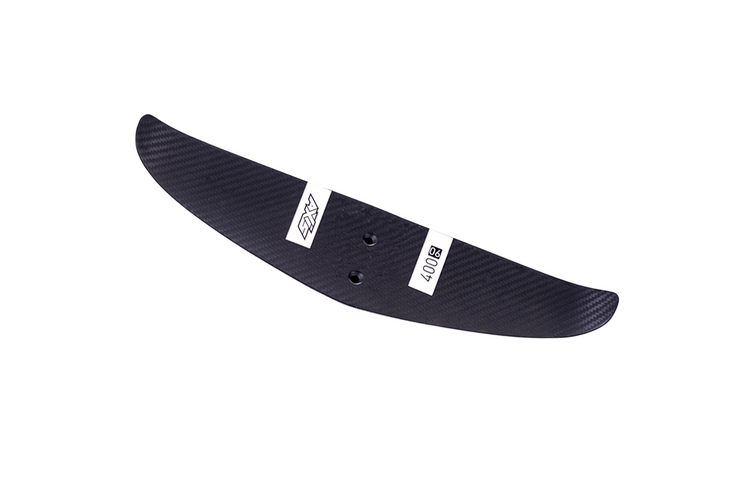

400 Freeride Carbon Rear Wing Technical Data

WINGSPAN: 400 mm / 15.75 in
CHORD: 90 mm / 3.54 in
ASPECT RATIO: 5.79
ACTUAL AREA : 291.18 cm² / 45.13 IN²
PROJECTED AREA: 276.54 cm² / 42.86 IN²
VOLUME: 175.35 cm³ / 10.70 IN³
