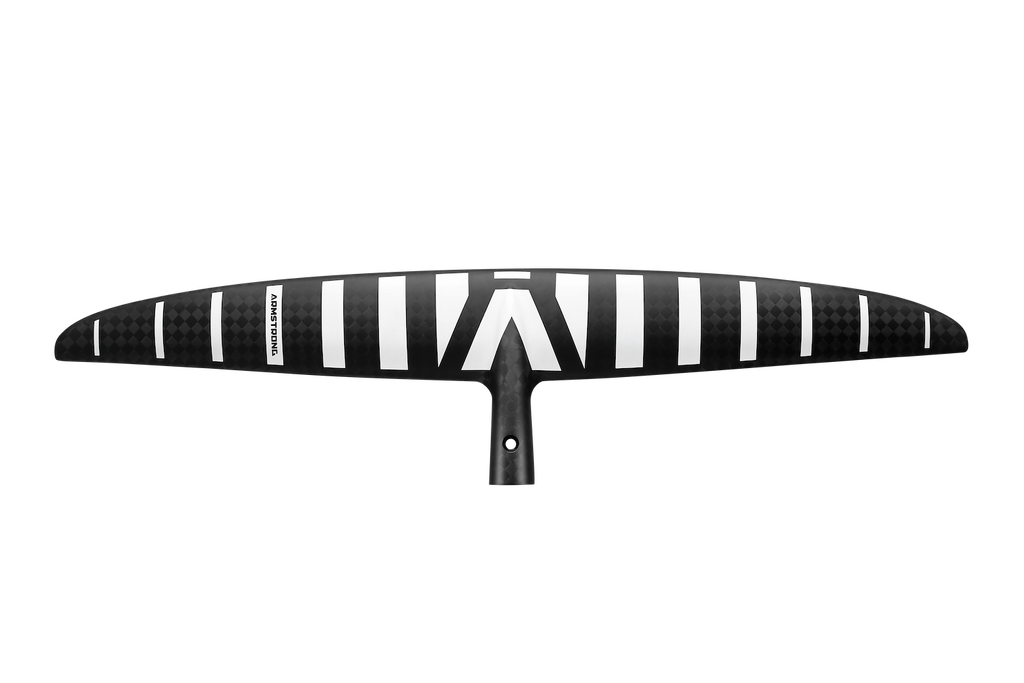

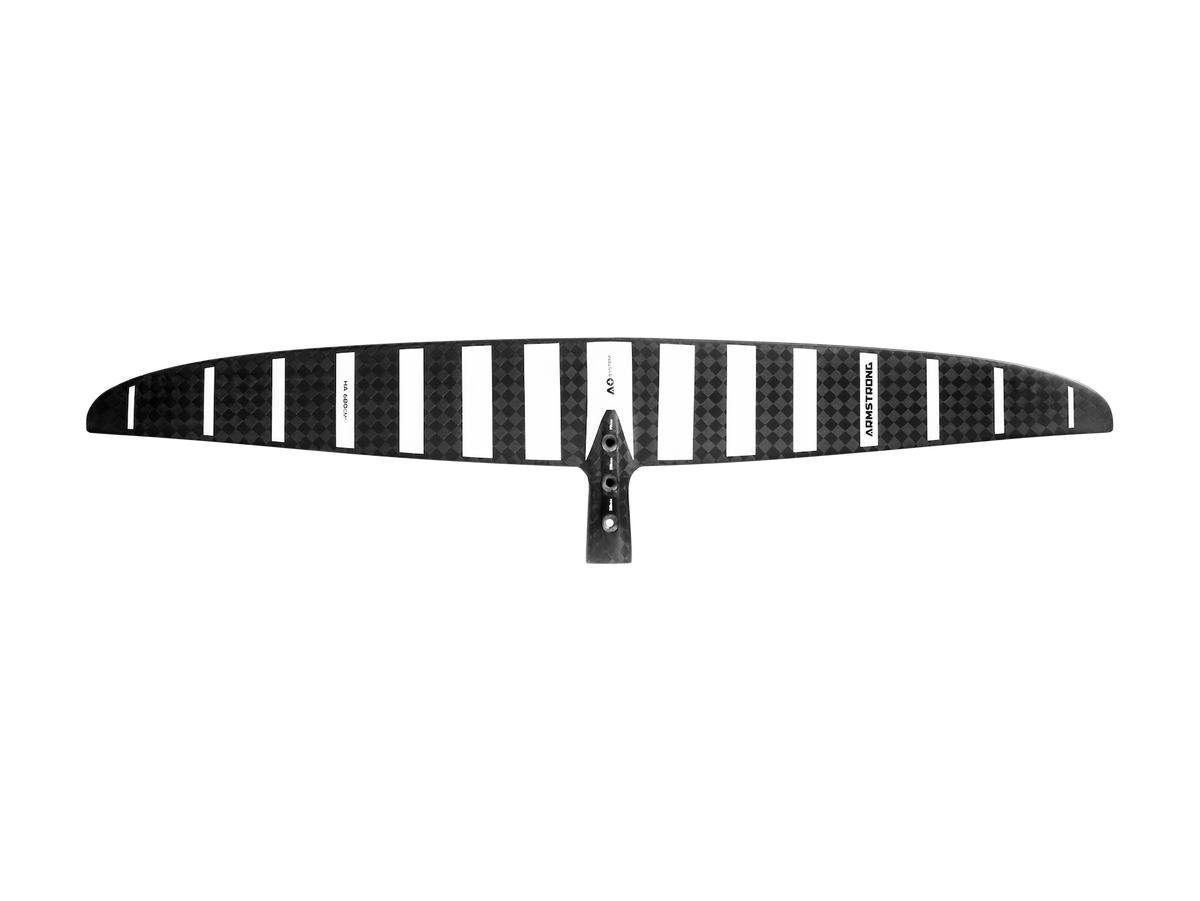

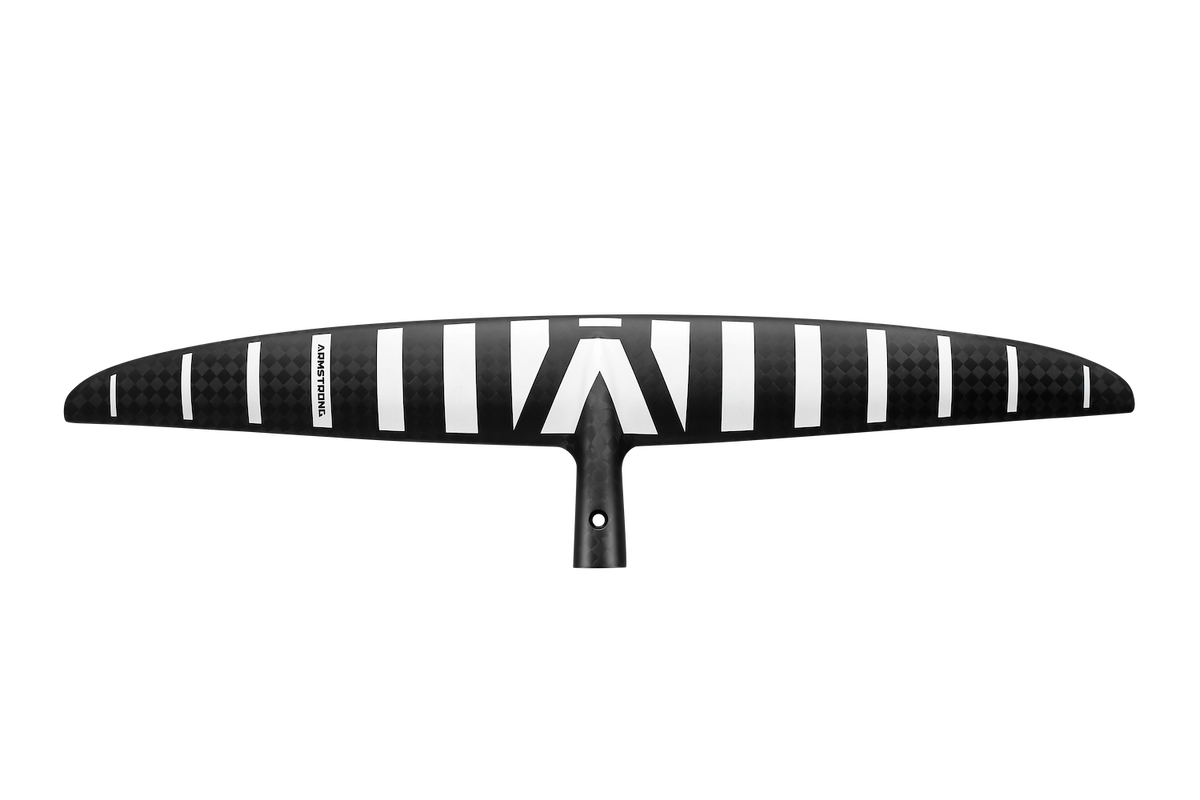

Armstrong A+ System High Aspect (HA) Front Wing
Available on orders of $100 or more. Excludes boards and oversized items.
Shipping details Backed by REAL 30-day returnsReturn it or exchange it. Start online, then ship it back.
Details & FAQs
Talk to a REAL Pro who rides it.
Located in Cape Hatteras. No bots.Combining rippability, easy pumping and endless glide.

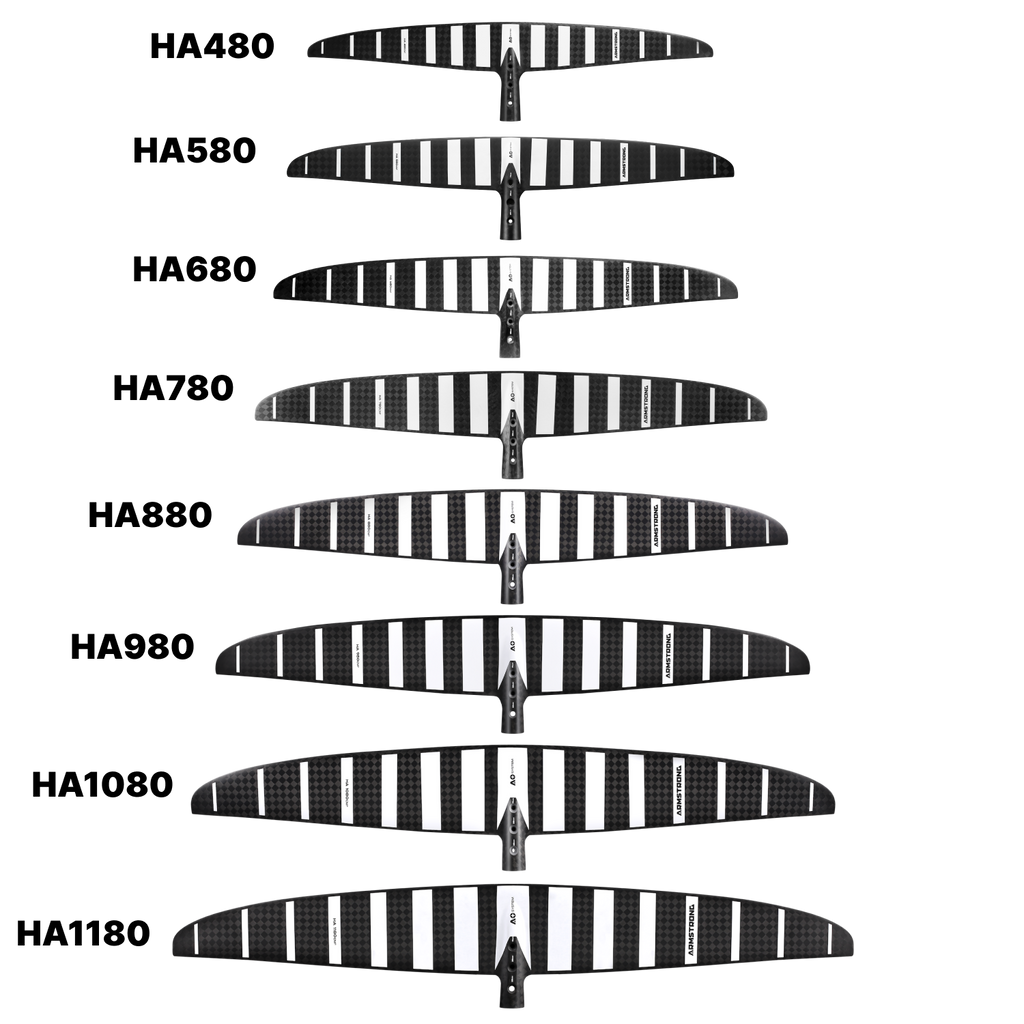

Building on the legacy of our first HA (high aspect) foils initially released in 2021, the new HA range offers an unprecedented combination of rippability, easy pumping and endless glide that expands the potential of intermediate to expert surf, downwind and wing foilers. Eight sizes - 480, 580, 680, 780, 880, 980, 1080, 1180cm2 - deliver a full quiver of options. The new HA range is the essence of foiling.

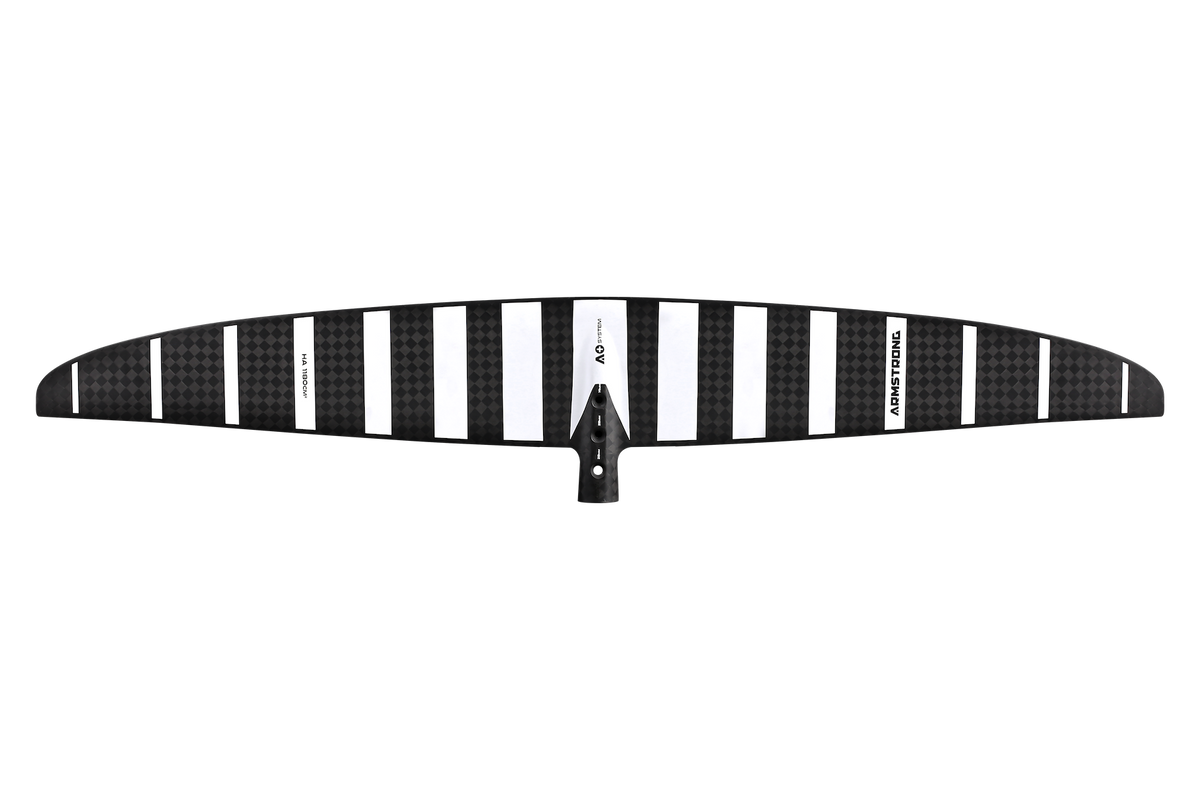

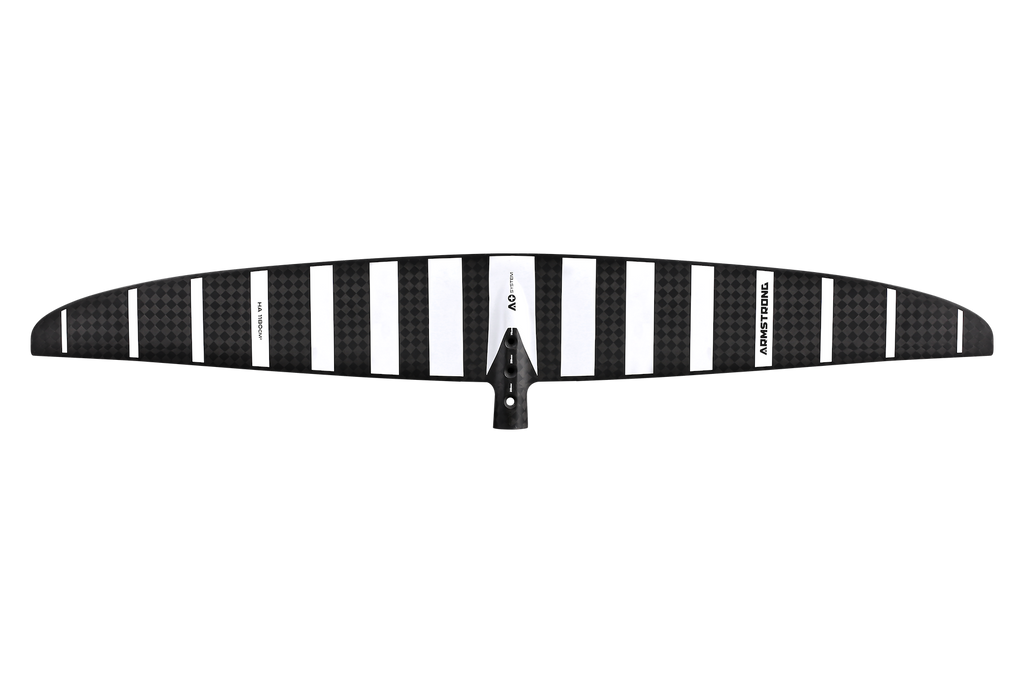

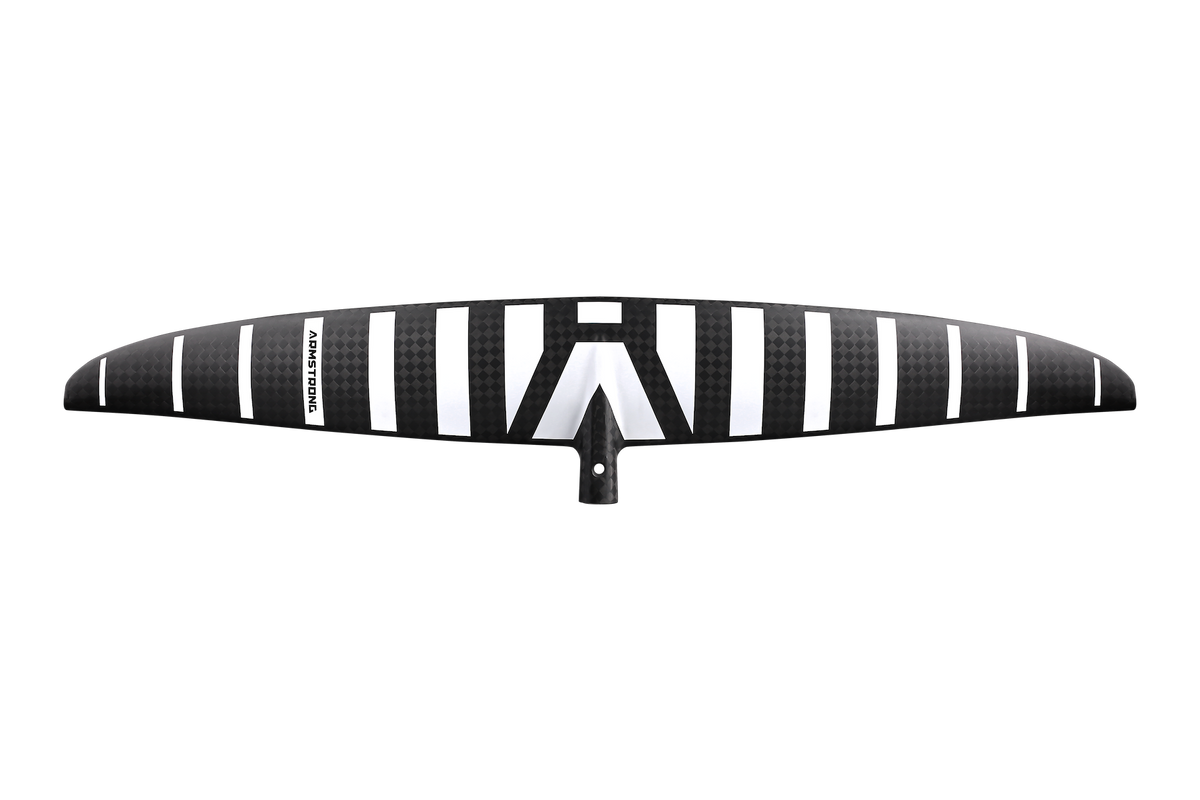

The do-it-all wing that intermediate foilers will love. Tailored more for heavier riders, this wing is designed to perform in all disciplines.
Span: 1066mm | AR: 9.63
Weight:
2.45lb/1.11kg

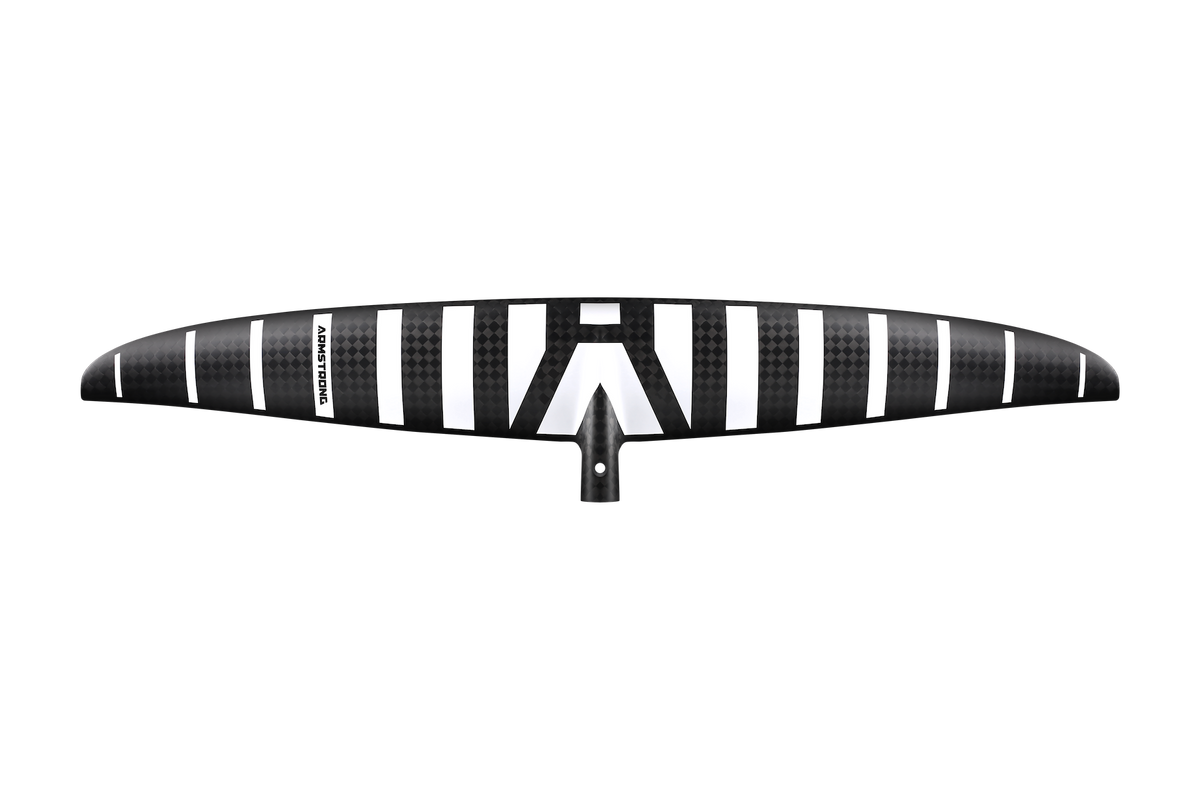

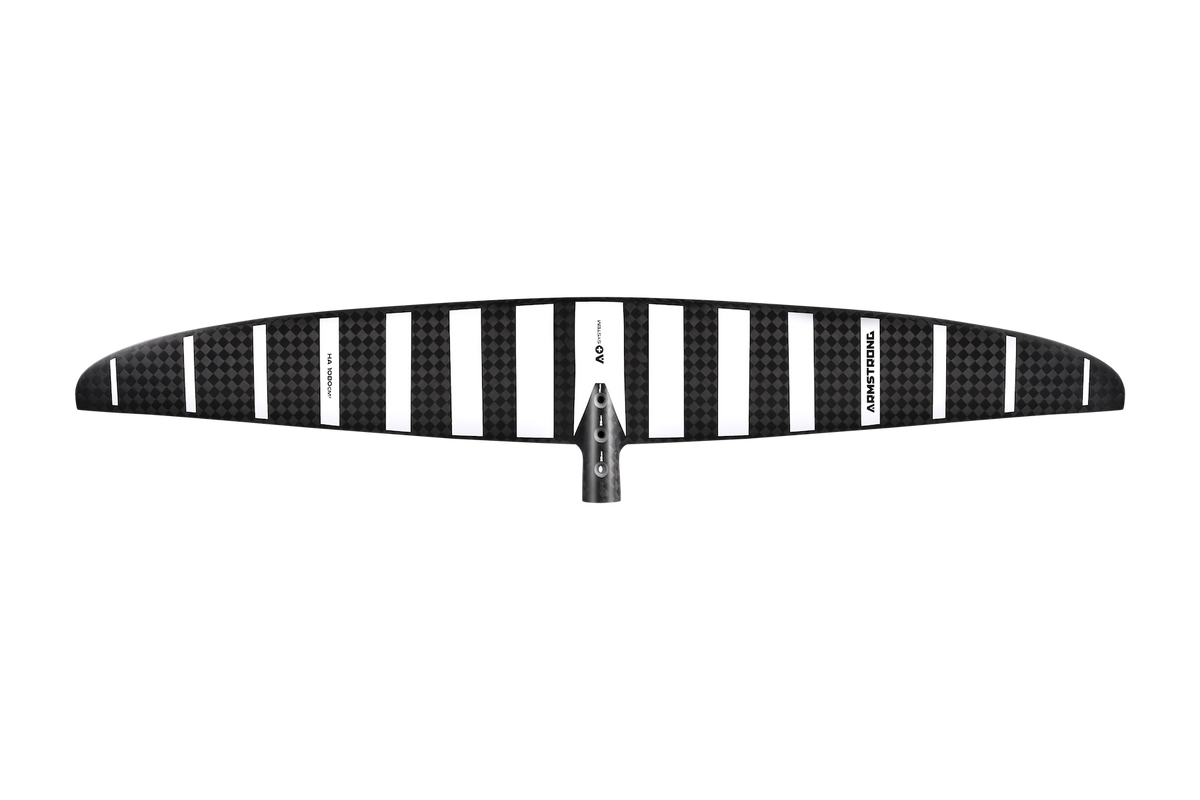

Everyone's hero foil for small days. This is the first HA front wing for most people and allows a wide range of skill abilities to get out on the water.
Span: 1020mm | AR: 9.63
Weight:
2.40lb/1.08kg

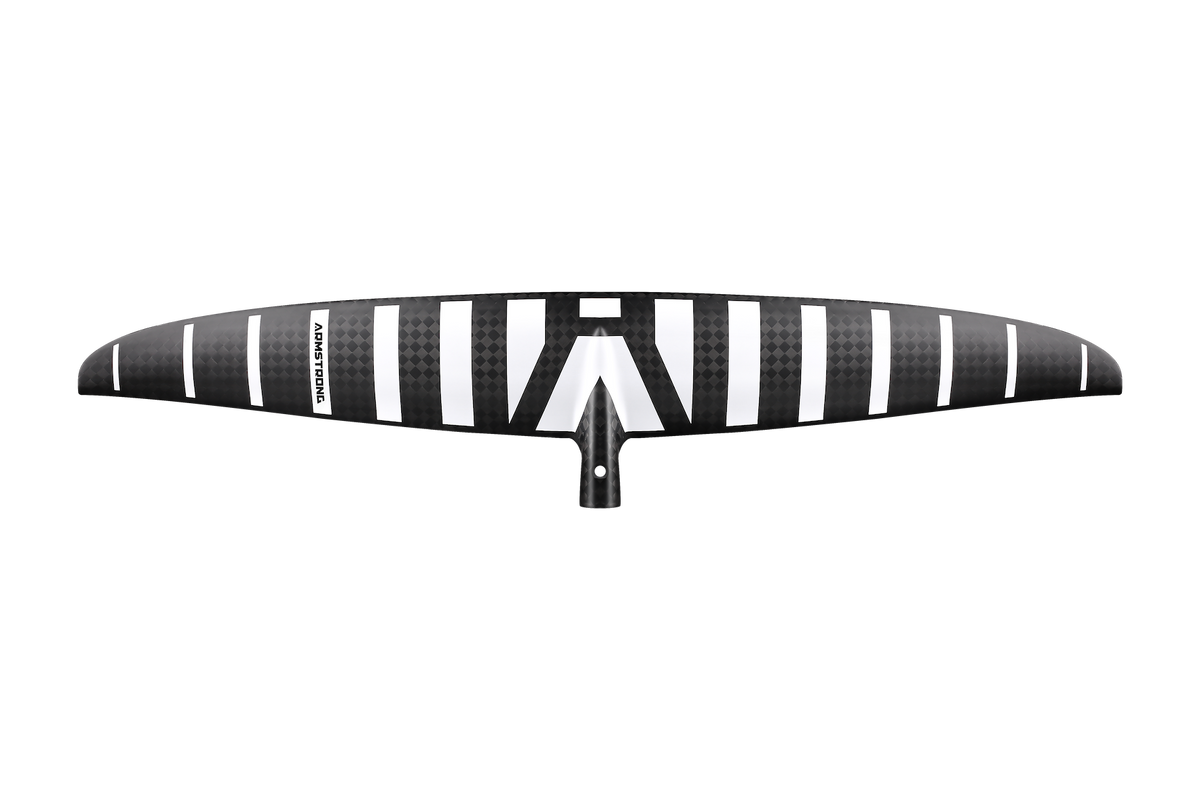

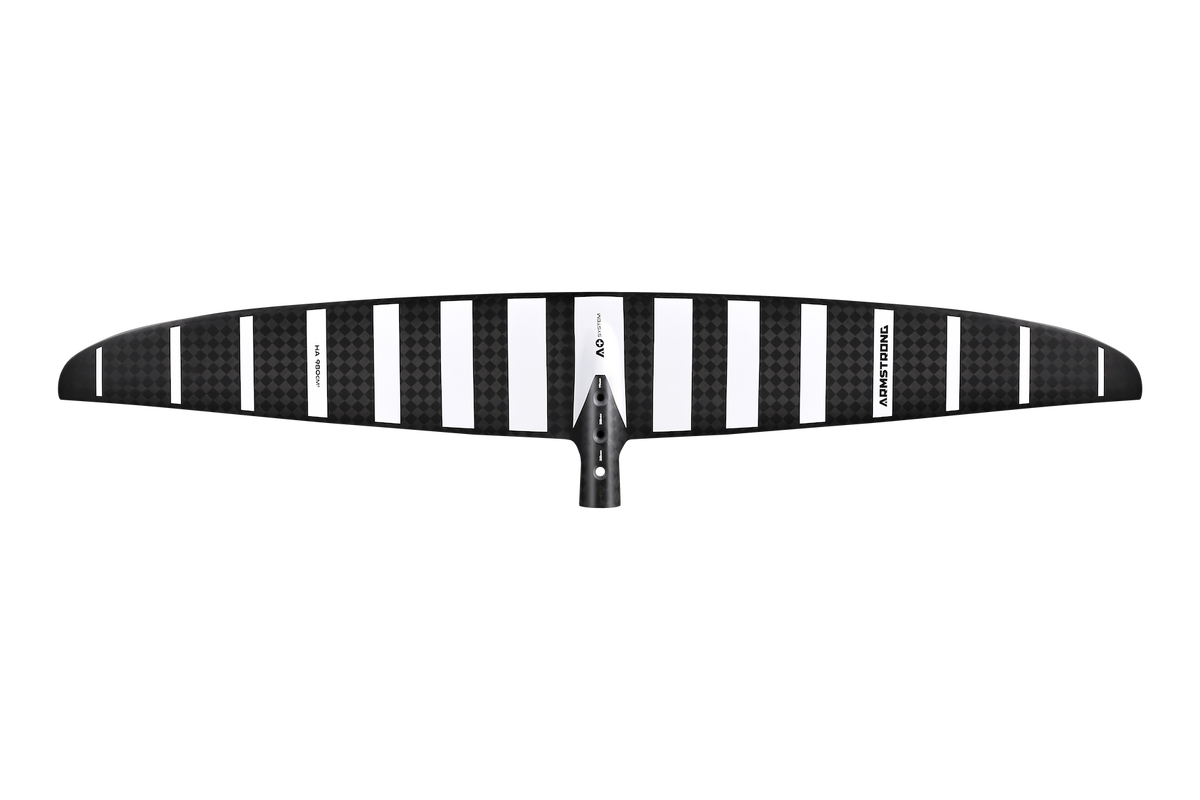

The all-around foil for lighter weight riders riding at an intermediate level. For heavier weight riders (above 200lb), this wing is your performance surfoil or winging front wing.
Span: 974mm | AR: 9.68
Weight:
2.15lb/0.97kg

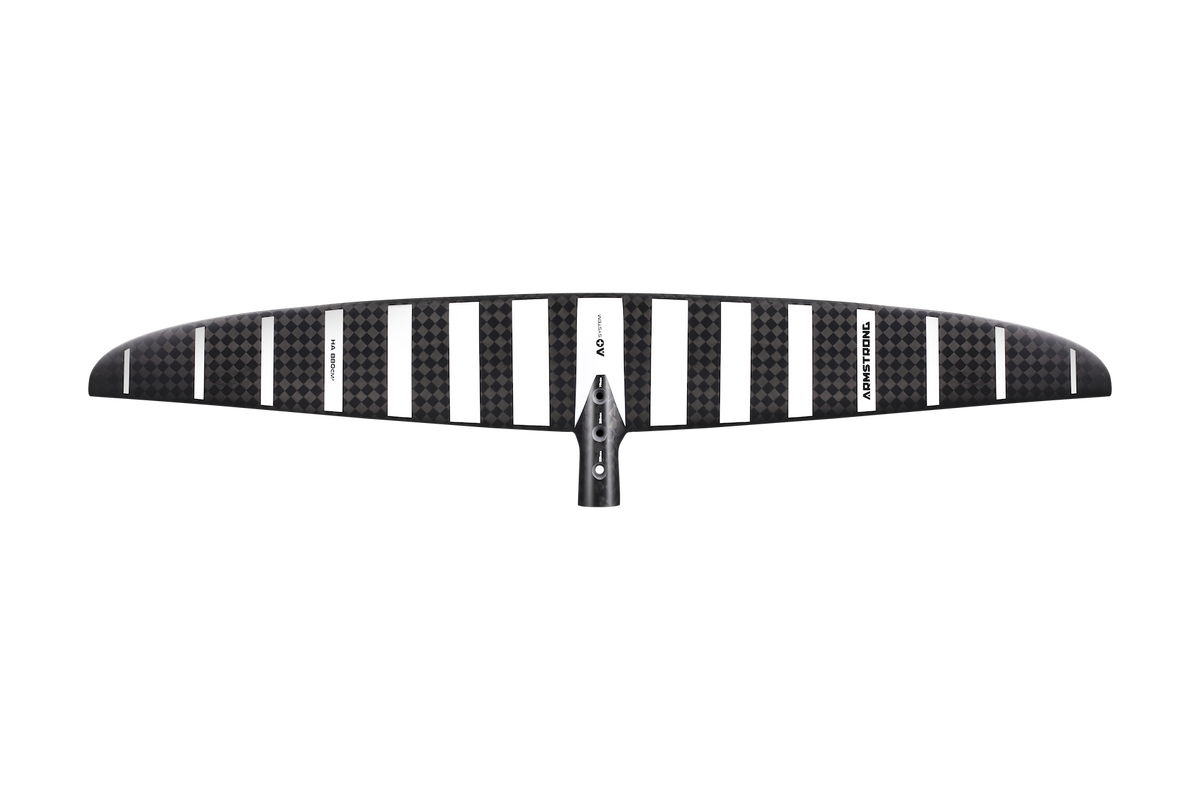

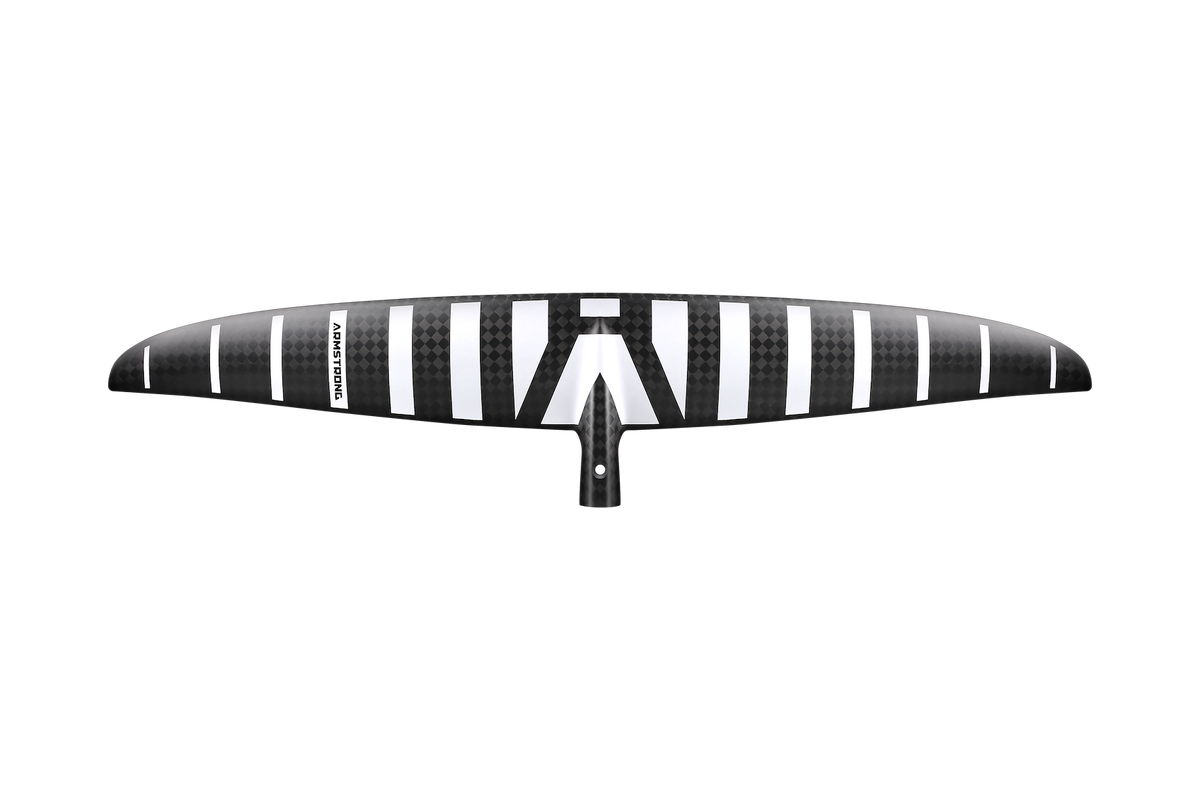

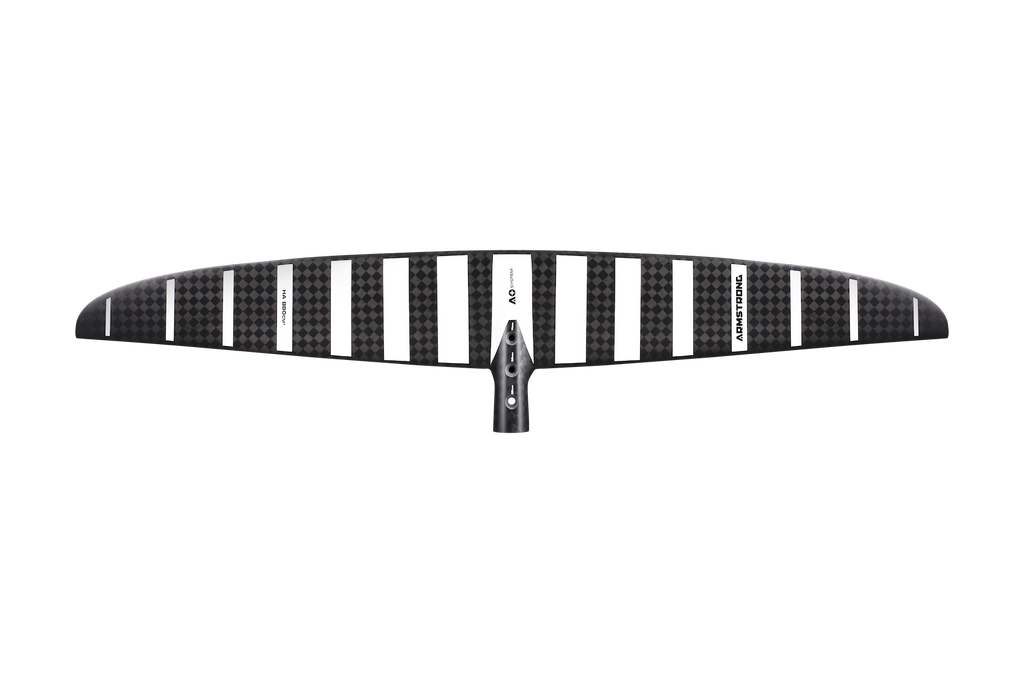

The magic size of the line-up. It boasts an exceptional amount of glide and rippability for all disciplines. Imagine the MA1000 and the HA925 having a baby with a lower bottom end - that's the HA880.
Span: 923mm | AR: 9.68
Weight:
1.95lb/0.88kg

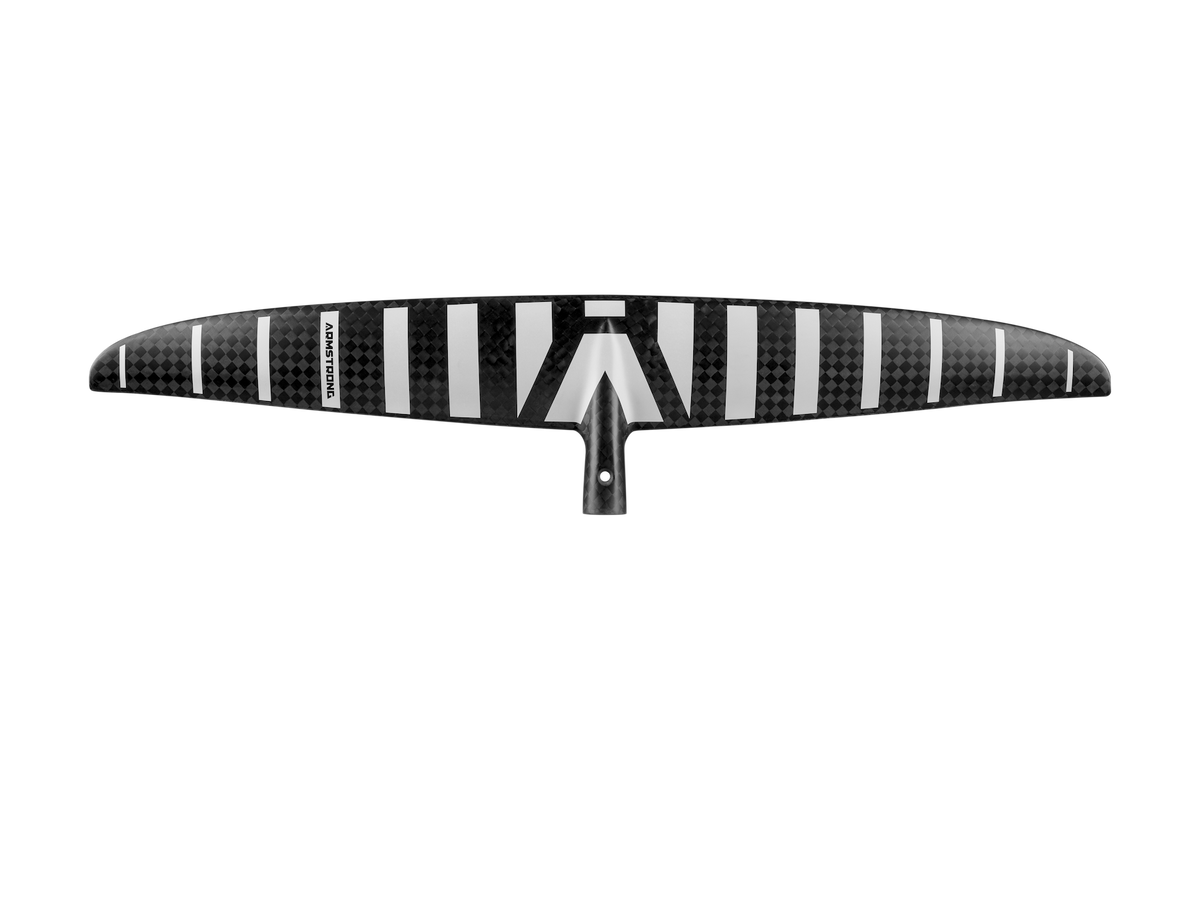

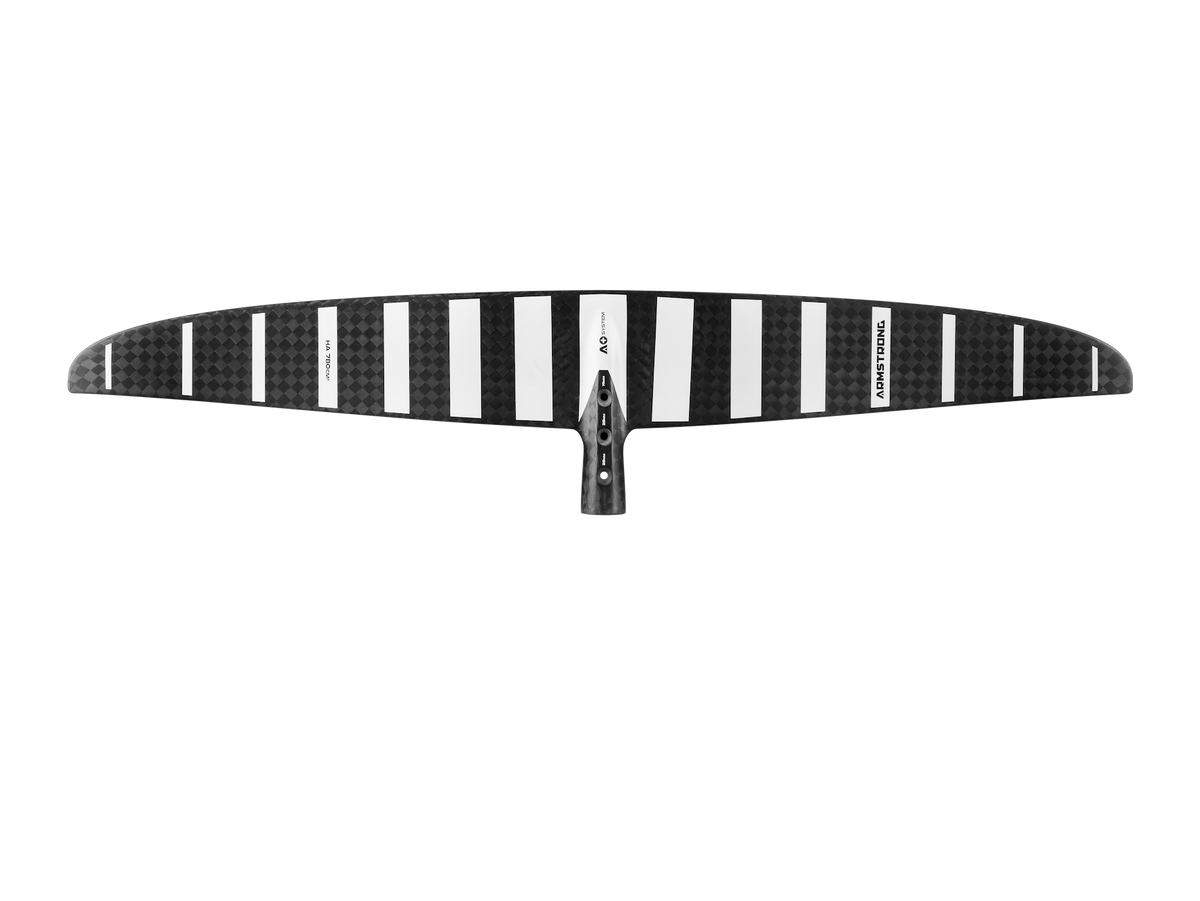

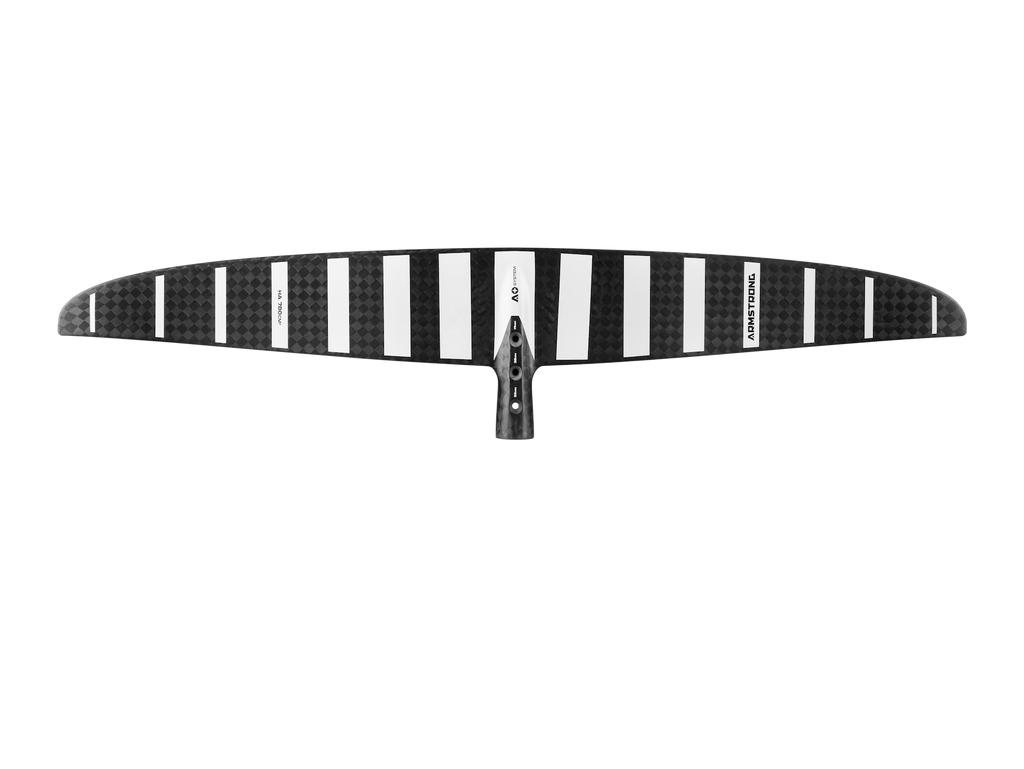

A performance surf foil and winging front wing for medium weight riders. Intermediate to advanced surf foilers will enjoy this wing in mid size waves, or when conditions call for more drive and speed down the line.
Span: 870mm | AR: 9.70

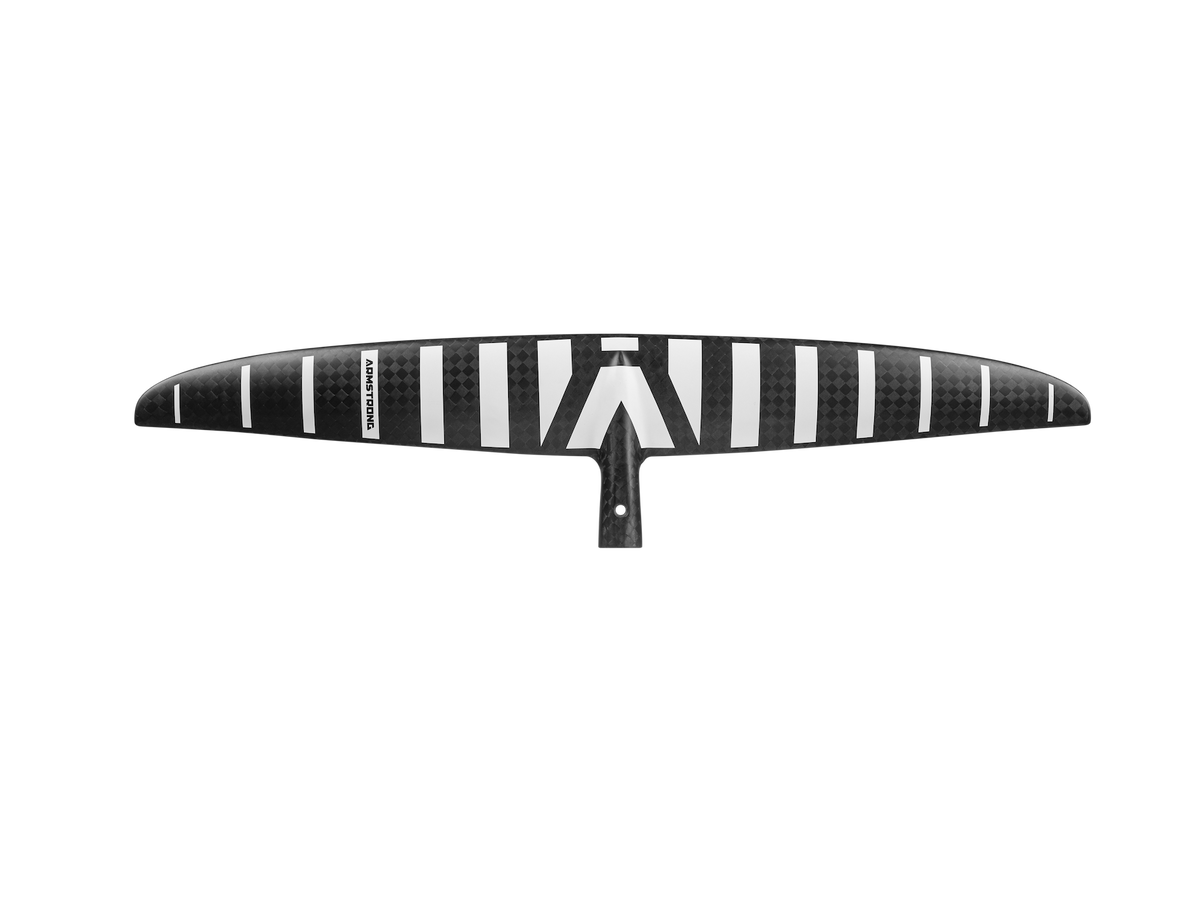

This is a light rider's high-performance winging, surf foiling, and towing dream front wing. Expert level surf foilers looking to connect with big waves while still enjoying a low stall speed and maneuverability will find the answer in the HA680.
Span: 818mm | AR: 9.80

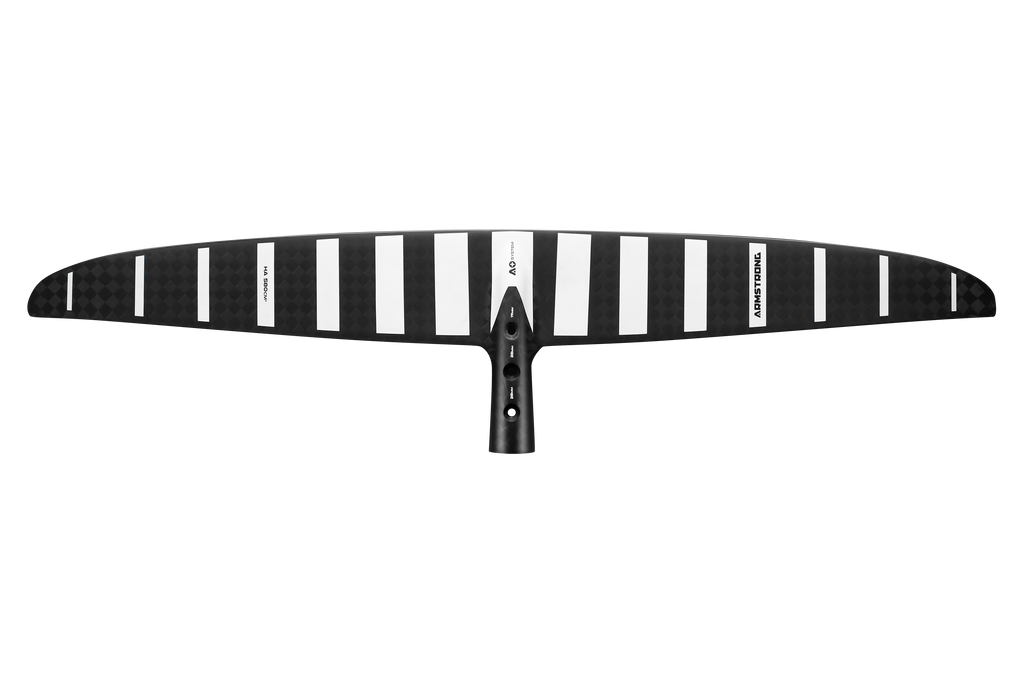

This wing is designed to push experienced riders' limits as far as possible. Experienced riders will enjoy this size for both wing foiling and towing.
Span: 780mm | AR: 10.5

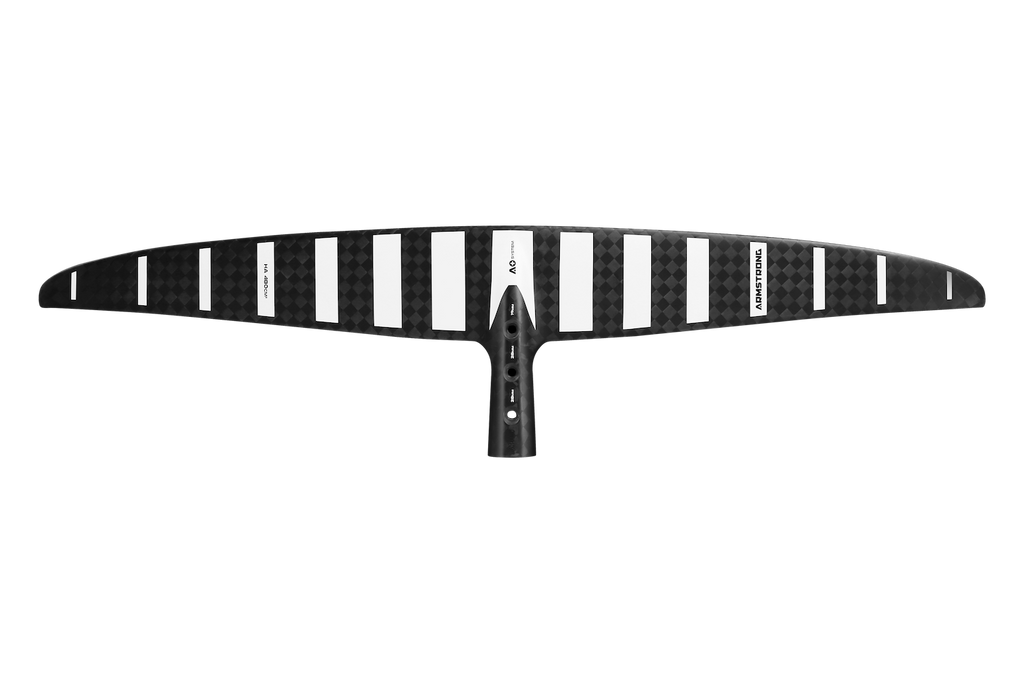

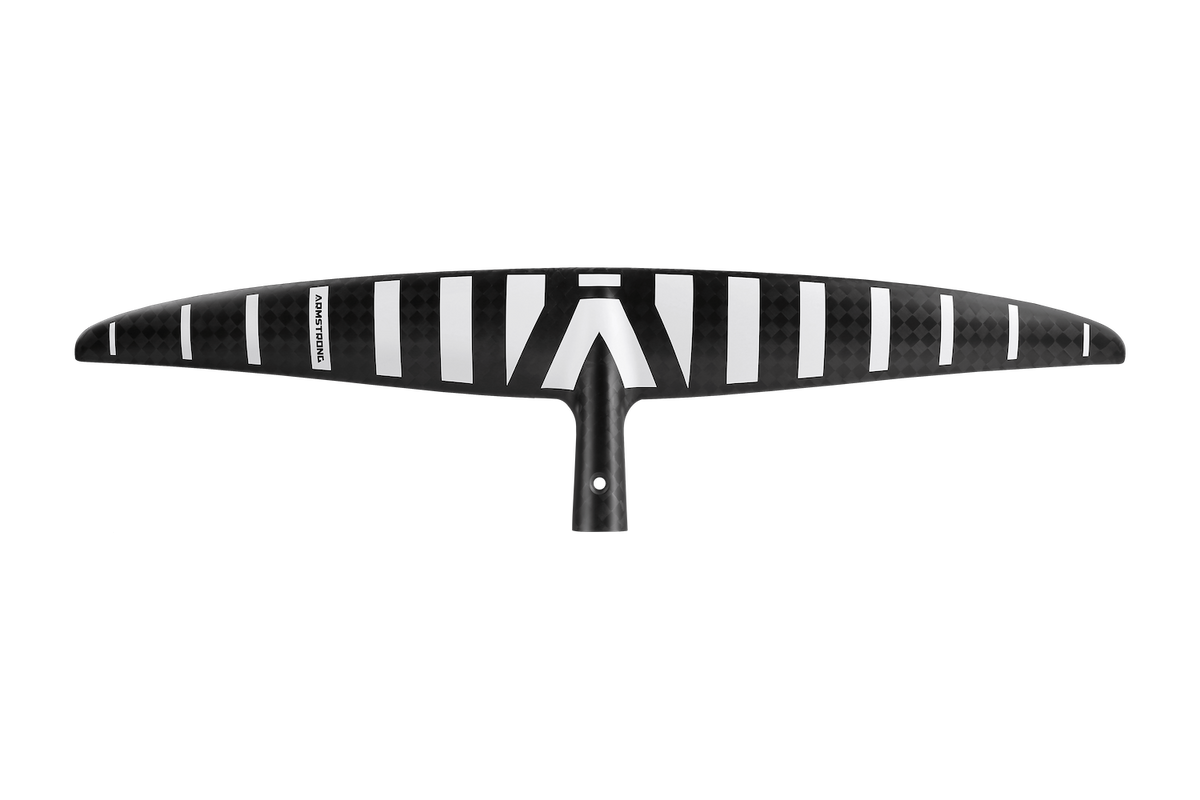

The 480 caters to powered up winging and tow surf foiling in situations where the rider needs more speed and efficiency to chase down stretched out swell lines. Ultralight rippers with advanced pumping skills may also find it ideal to extract the most from their prone surf foiling sessions.
Span: 726mm | AR: 11
A newly developed section shape, outline and profile give the HA range a remarkable "best of both worlds" ability to carve beautiful lines and easily stay high in the pumping power zone for maximum wave riding potential.
The foil section is adjusted incrementally at points across the wingspan (evolutive section shape) to provide a big boost to gliding efficiency and consistent lift at various bank angles and flight speeds. Riders are enabled to stay up high in the pumping power zone and experience an amazing carving feel for ultimate wave riding satisfaction.
Meticulously engineered to push your fun on the water.
The HA range benefits from two years' worth of research with a leading CFD team in the hydrofoil sailboat world. These foils turn beautifully and their section is optimised to stay with the wave allowing smooth flowing connections between swell lines. Excellent lift means riders can drop down one full size from their previous HA foils for improved carving and speed range while maintaining an easy low end.
Built for progression.

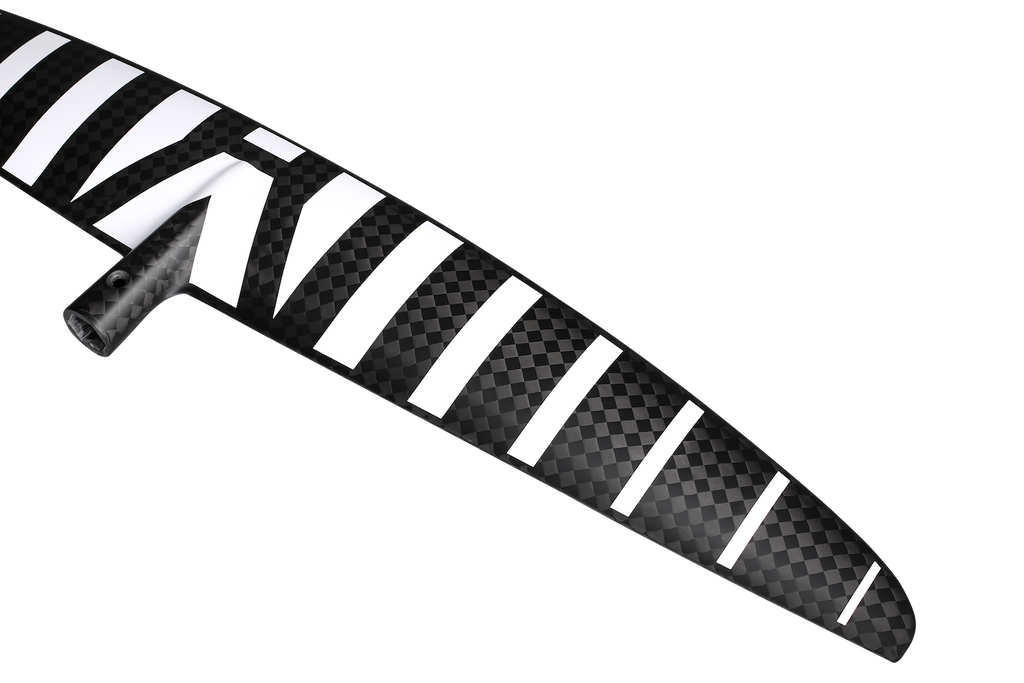

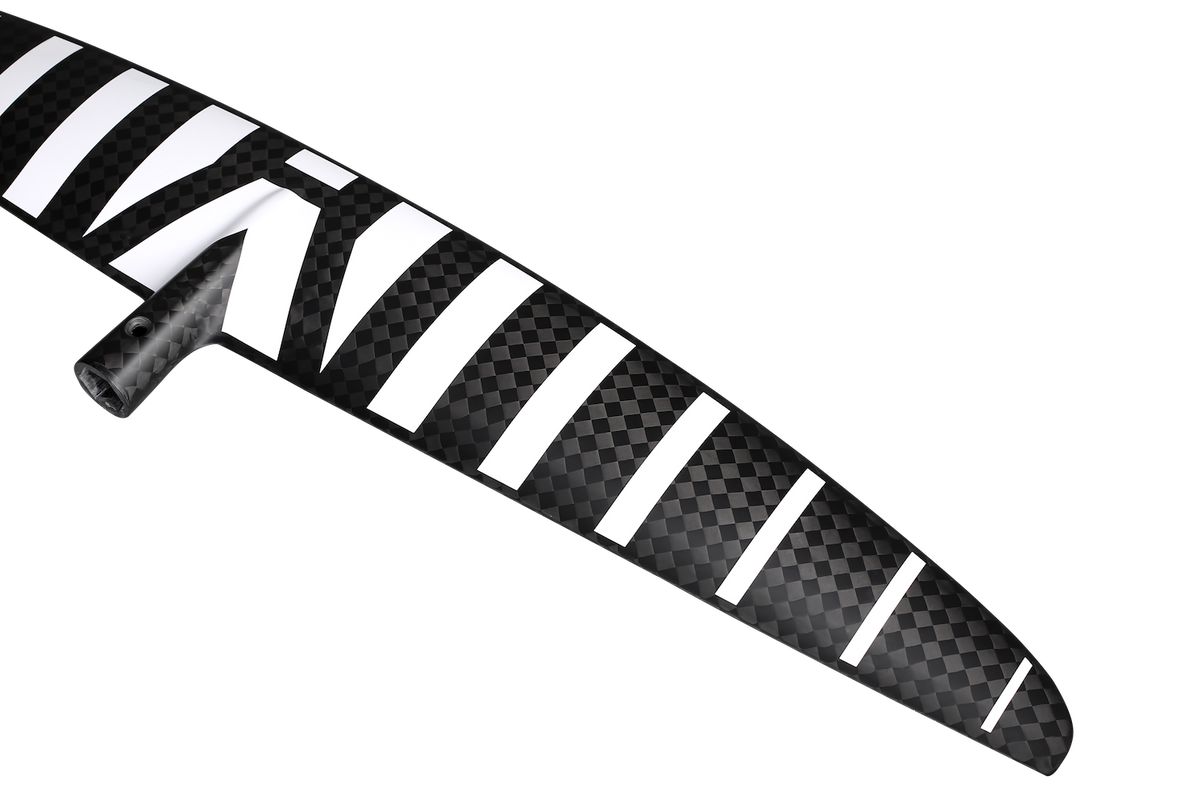

High aspect foils experience extreme torsional forces in the water, especially when carving. We've crafted the HA range from premium Toray high and intermediate modulus carbon fibre for an ultra strong, stiff and lightweight foil that performs exceptionally under the feet of intermediate to expert riders. The consistency of this layup when combined with our industry-leading manufacturing quality provides the best in performance and durability.
All Features
All Specifications
| HA480 | HA580 | HA680 | HA780 | HA880 | H9980 | HA1080 | HA1180 | |
|---|---|---|---|---|---|---|---|---|
| Area | 480cm2 | 580cm2 | 680cm2 | 780cm2 | 880cm2 | 980cm2 | 1080cm2 | 1180cm2 |
| Span | 726mm | 780mm | 818mm | 870mm | 923mm | 974mm | 1020mm | 1066mm |
| Aspect Ratio | 11 | 10.5 | 9.80 | 9.70 | 9.68 | 9.68 | 9.63 | 9.63 |
| Weight | Coming Soon | Coming Soon | Coming Soon | Coming Soon | 1.95Lb / 0.88Kg | 2.15Lb / 0.97Kg | 2.40Lb / 1.08Kg | 2.45Lb / 1.11Kg |
Precision engineering, premium materials, and uncompromising attention to detail define Armstrong’s world-class performance and durability.
