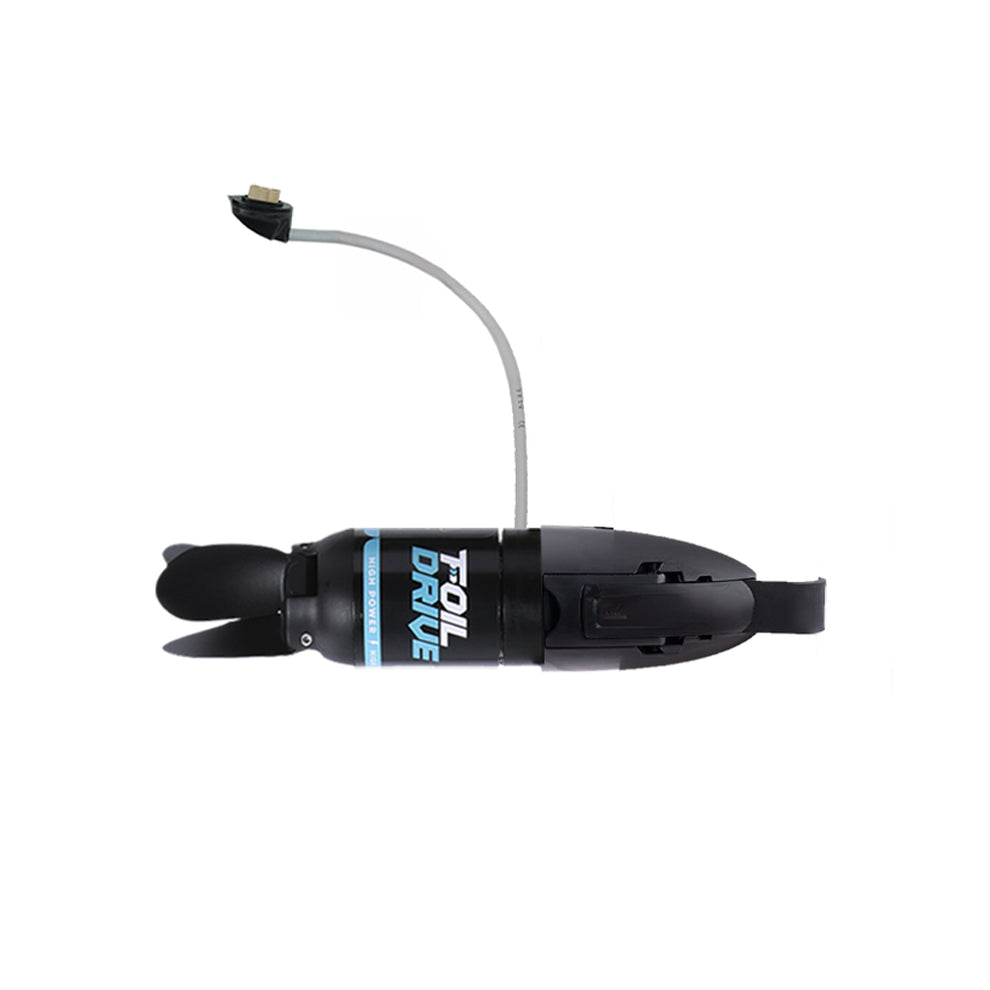

Foil Drive Retro-Fit High Power Motor Kit

From Foil Drive

Ready to electrify your foil setup? The Retro-Fit High Power Motor Kit includes the latest and highest performance motor components needed to quickly install or remove Foil Drive power from your existing mast.

Combining the low-profile Universal Mini Pod, High Power V2 Motor and Three Blade Propeller setup, this is Foil Drive's go-to retro-fit configuration for the most take-off thrust, efficient surface motoring and easiest performance across assisted foiling disciplines.

How It Goes Together

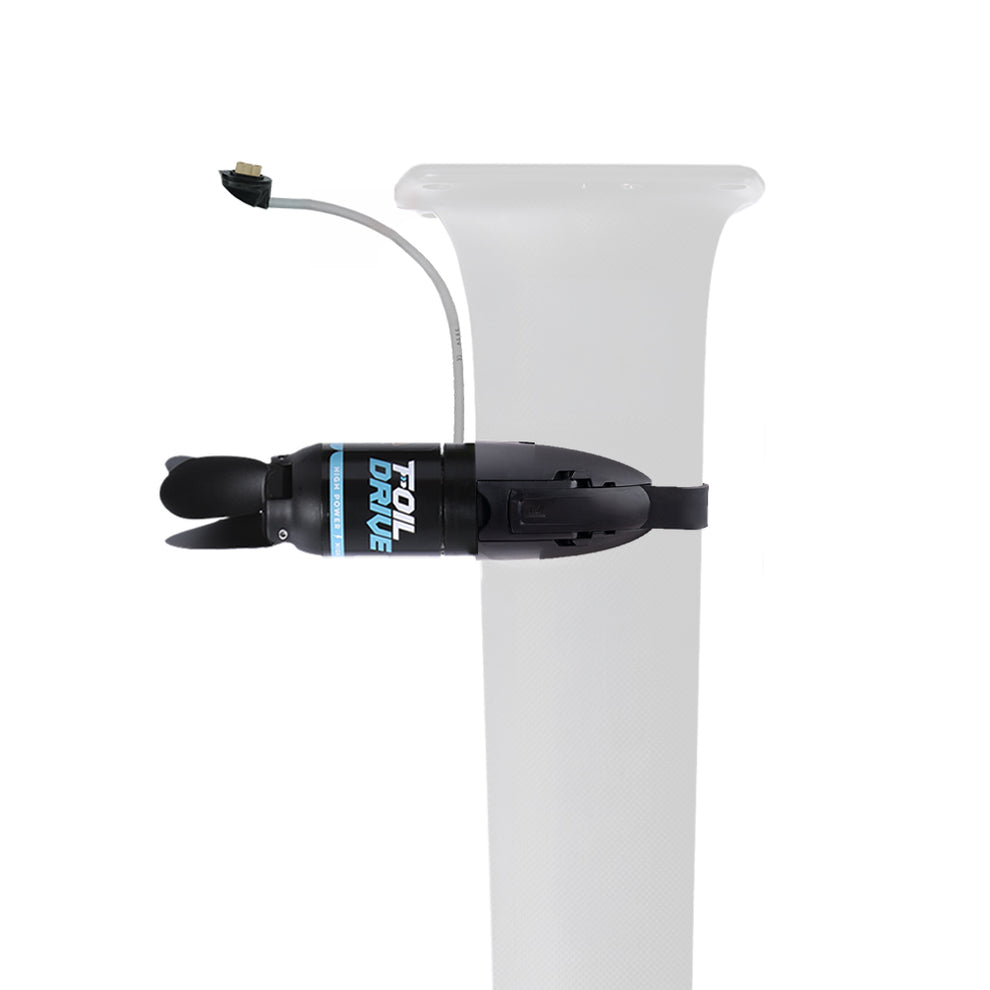

• Universal Mini Pod
  • A clean, low-drag connection between the motor and your foil mast, fully removable and adjustable without tools. Three interchangeable straps cover a wide range of mast profiles — small 95–110mm, medium 112–128mm, large 130–145mm.
• High Power V2 Motor
  • The most low-end thrust in the range, with more power available through the session.
• Three Blade Hub and Standard Propellers
  • Now standard with the bundle. The three blade setup is the most popular all-round configuration — punchy acceleration, smooth power delivery and efficient battery life, with less cavitation under load than a two blade.
• 20cm removable motor cable
  • Positions the motor at a versatile starting height for surf, pumping, wing, downwind, wake and flatwater assisted foiling. As your riding progresses or your setup changes, the cable can be swapped for another length.

For dedicated eFoiling, a longer 60cm or 70cm cable is recommended and available separately.

Features

• Adjustable motor position on the mast
• Toolless Mini Pod installation and removal
• Interchangeable motor cable lengths

Tech Specs

• High Power V2 Motor
• Universal Mini Pod retro-fit mounting system (low drag)
• 20cm removable motor cable
• Three Blade Hub
• Standard Three Blade Propellers

Package Includes:

• Universal Mini Pod
  • Outer Pod — smooth, hydrodynamic outer shell
  • Inner Pod — attaches directly to the motor and slides securely into the Outer Pod
  • 3x Pod Straps — small 95–110mm, medium 112–128mm, large 130–145mm
• High Power Motor
  • High Power Stator
  • High Power Rotor
• Motor Cable
  • 20cm Removable Cable
  • Rubber Cable Guide
• Propeller Setup
  • Three Blade Hub
  • Three Standard Propellers
• Hardware
  • 4x M4 x 16mm stainless steel bolts — Inner Pod to Motor
  • 5x M4 x 10mm stainless steel bolts — Motor to Three Blade Hub
  • 3x M3 x 30mm stainless steel bolts — Three Blade Hub to Propeller
• Protection
  • Neoprene Motor Protection Cover

Compatible With

• All foil mast brands. The Universal Mini Pod uses interchangeable straps to accommodate a wide range of mast profiles.
• Designed as a retro-fit motor solution for riders adding Foil Drive to an existing foil setup.
• The removable V2 motor cable lets you change the motor height to suit your board, mast and riding style.
• For dedicated eFoiling, pair the motor with a longer 60cm or 70cm removable cable.

Not compatible with Gen1 Assist or Assist Plus systems.
