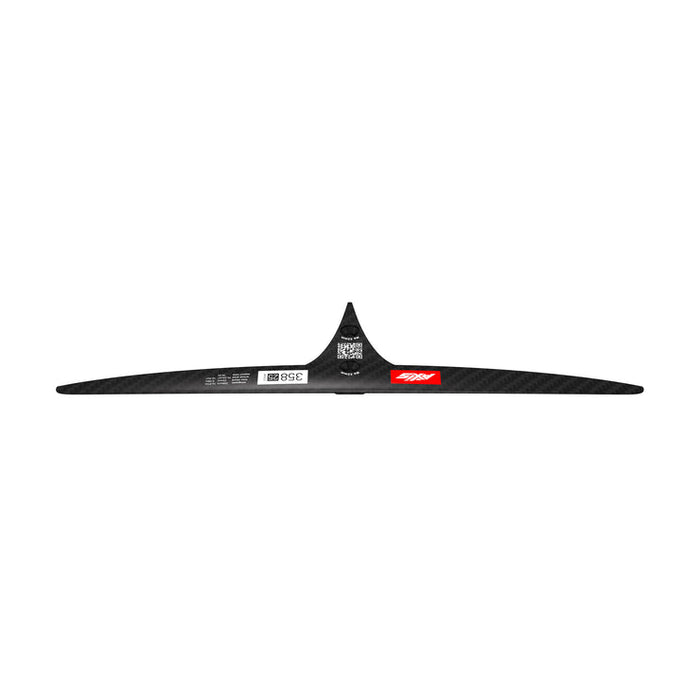

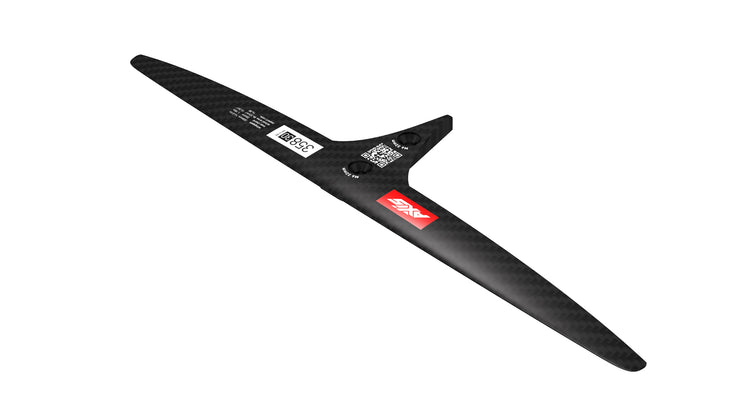

Axis Skinny Rear Wing

From Axis

The Skinniy rear wings inspire confidence by providing a more comfortable ride at speed, they reduce the normal buildup of front foot pressure that can be associated with high-speed foiling. They are a perfect match to ARTPRO foils, but keep in mind, your HPS, ART, PNG and even BSC, will equally benefit from the Skinny high-performance DNA.

The development of the much faster-running ARTPRO wings prompted us to begin experimenting with reduced chord rear stabilisers to maximise this newfound speed advantage. With minimal span changes (just 7mm between them) and drastic chord reduction down to 55, 50, 45, 40 and 35mm, we found positive gains in speed, control, balance and feel. The Skinnies have inherited many of the same characterises that make our Progressive range so popular, like the precise feel and seamless turn initiation plus recovery.

They are very low drag and free up speed and turning. Heavier riders and those less experienced will gravitate to the 55, 50 and 45 chord models, those who are lighter and or have greater experience might opt to reduce drag in the extreme and try the 40 or 35mm chord options.

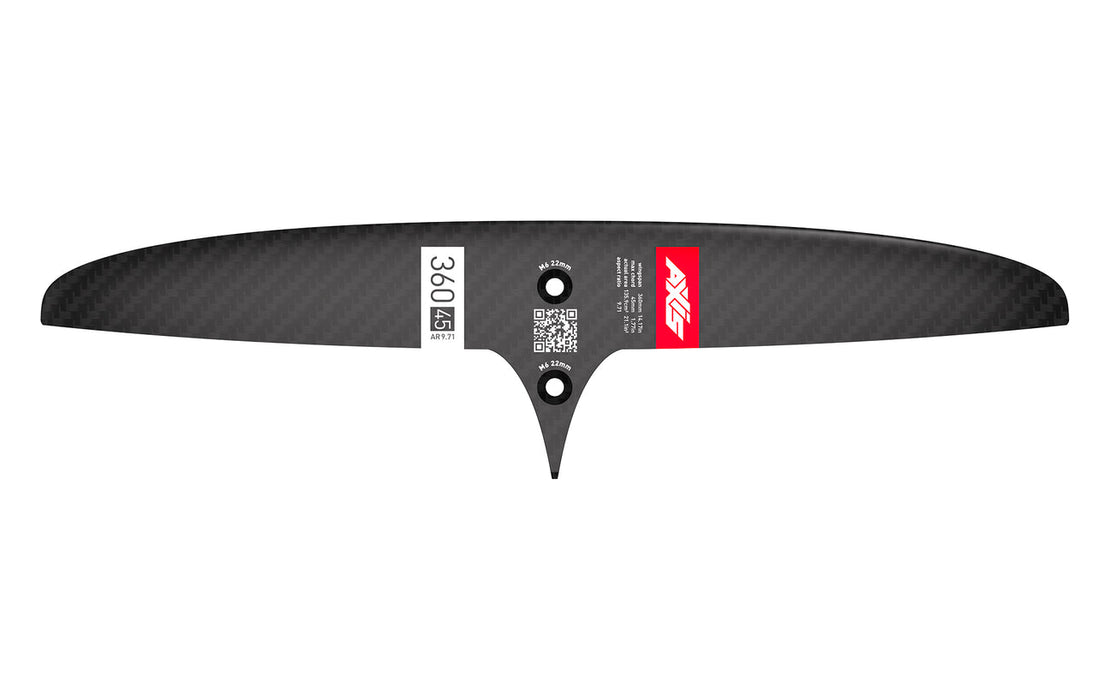

360/45 Technical Data

• WINGSPAN: 360 mm /14.17 inches
• MAX CHORD: 45mm, 1.77 inches
• ASPECT RATIO: 9.71
• ACTUAL AREA 135.94 square cm / 21.07 square inches
• VOLUME: 37.74 cubic cm / 2.30 cubic inches

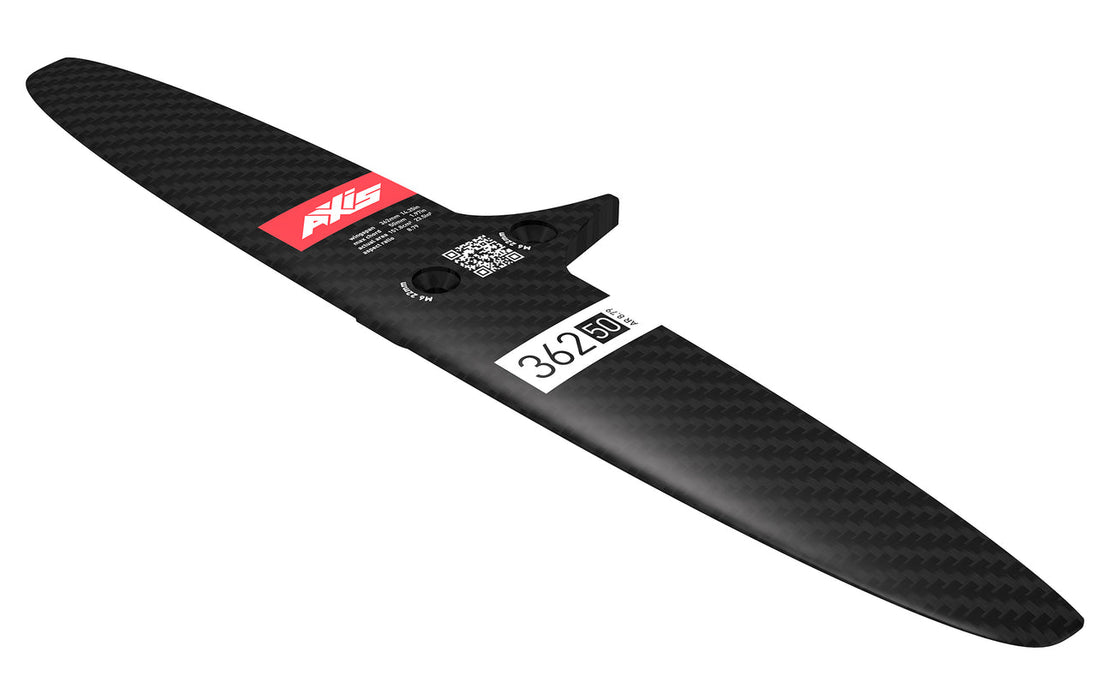

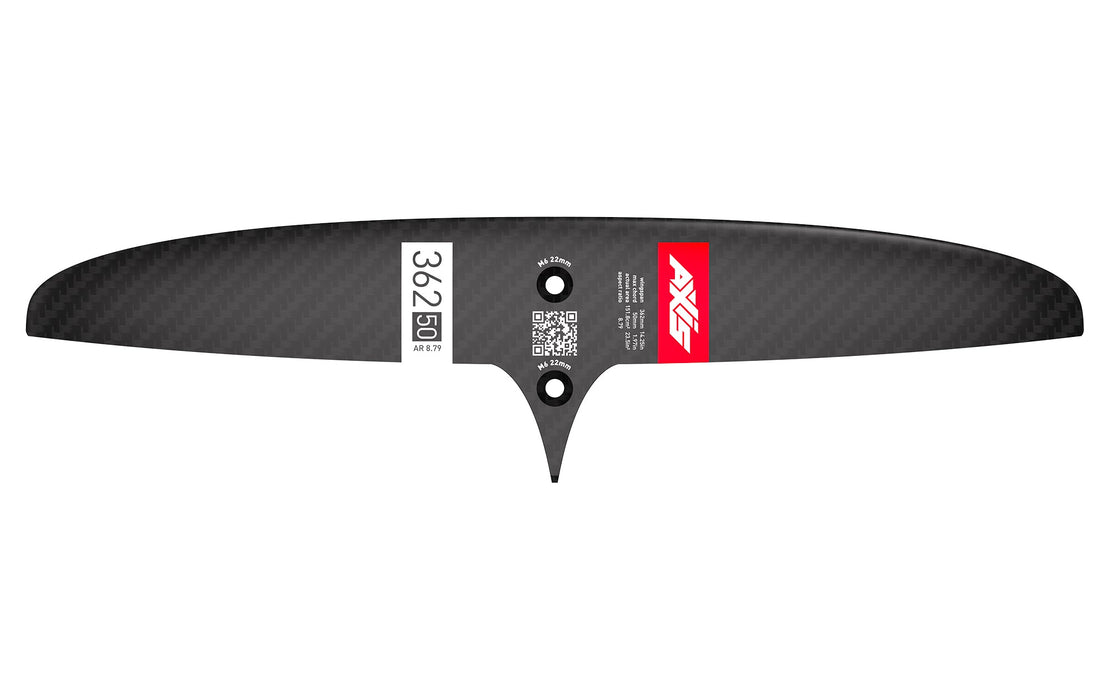

362/50 Technical Data

• WINGSPAN: 362 mm /14.25 inches
• MAX CHORD: 50mm, 1.97 inches
• ASPECT RATIO: 8.79
• ACTUAL AREA 151.81 square cm / 23.53 square inches
• VOLUME: 46.68 cubic cm / 2.85 cubic inches

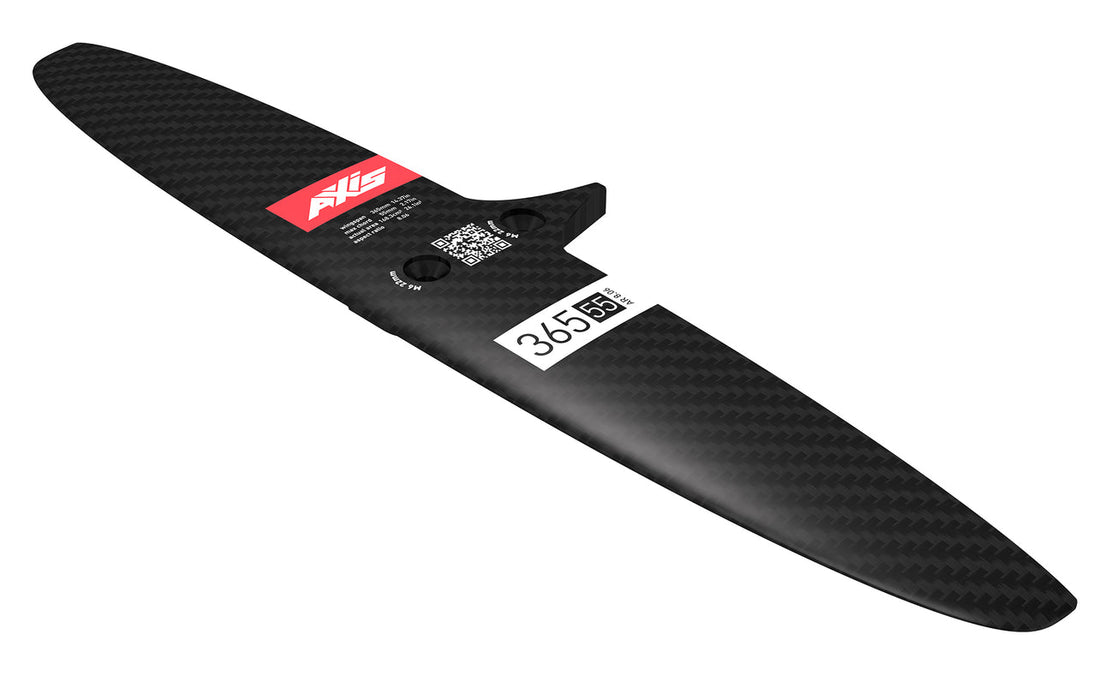

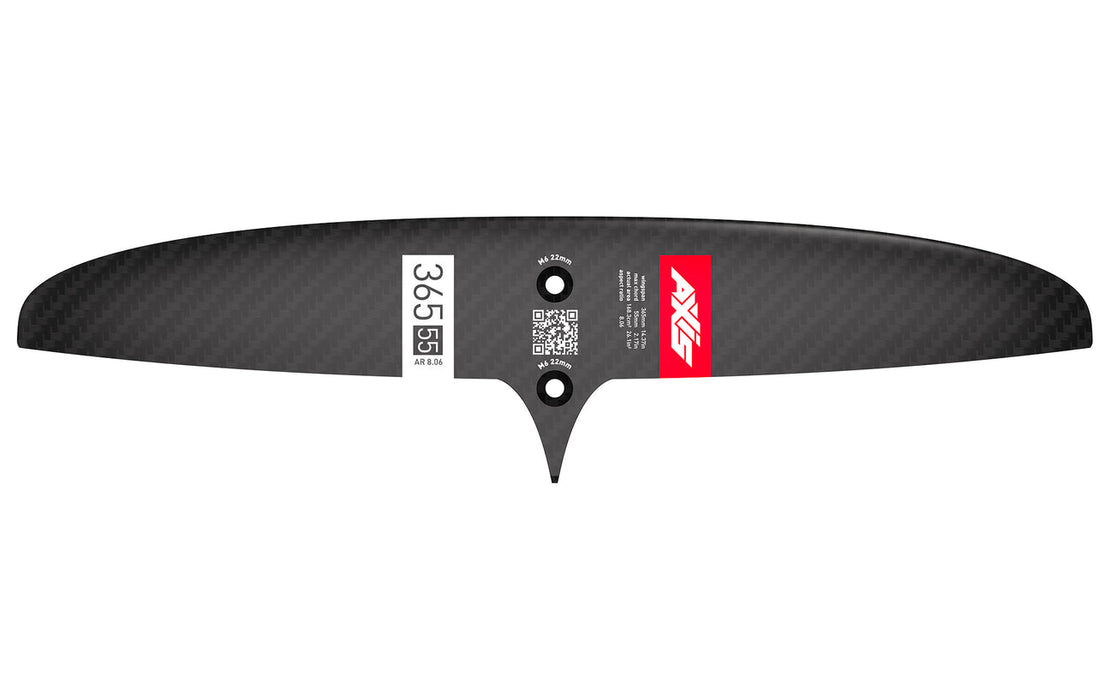

365/55 Technical Data

• WINGSPAN: 365 mm /14.37 inches
• MAX CHORD: 55mm, 2.17 inches
• ASPECT RATIO: 8.06
• ACTUAL AREA 168.33 square cm / 26.09 square inches
• VOLUME: 57.57 cubic cm / 3.51 cubic inches

Package Includes:

• Wing
• Wing Cover

• Hardware Sold Separately
