Foil Drive Assist MAX Kit w/ V2 Motor & 20cm Cable

Package includes 3 items MAX High Power / High Power w/ 2 Blade / None

Foil Drive MAX Battery

High Power

×1

Foil Drive Assist MAX Base Kit (No Motor)

Package only

×1

Foil Drive High Power V2 Motor Complete

×1

TOP OF THE LINE

MAX POWER, MAX RUNTIME

The Foil Drive Assist MAX is the flagship model with maximum power, runtime, thrust and versatility. Suitable for any rider at any skill level for just about any type of foiling you can imagine! The Assist MAX does it all!

WHO RIDES THE MAX?

It doesn't matter if your surfing, down winding, Winging or in flat Water, the Assist Max is for everyone, however heavier riders and those wanting to just pull the trigger and fly will love the extra run time and thrust.

If you've been around Foil Drive before, the Assist MAX is for anyone who loves the runtime of the Assist PLUS and is keen on more power and more runtime! If you're new to Foil Drive, the MAX is the perfect all rounder!

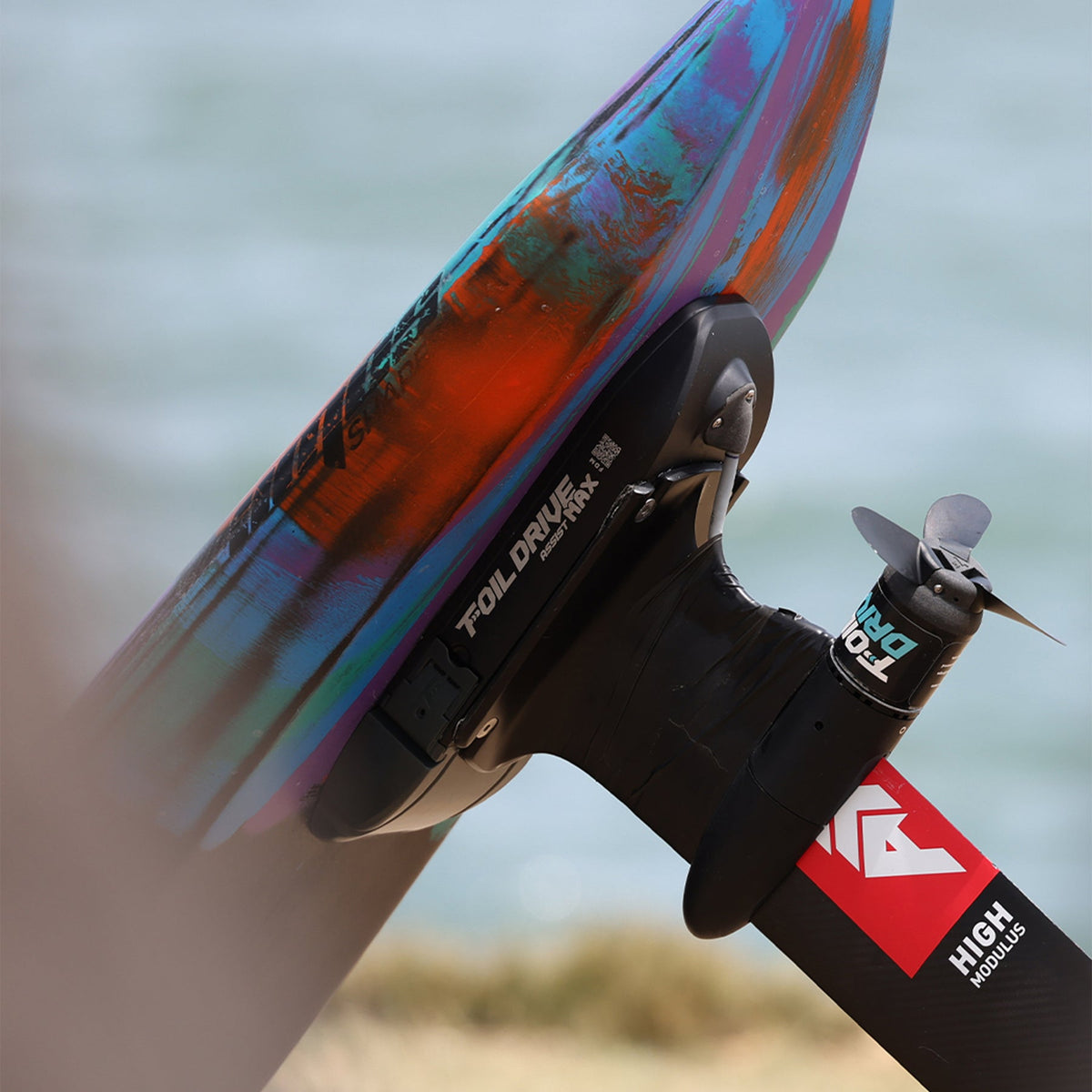

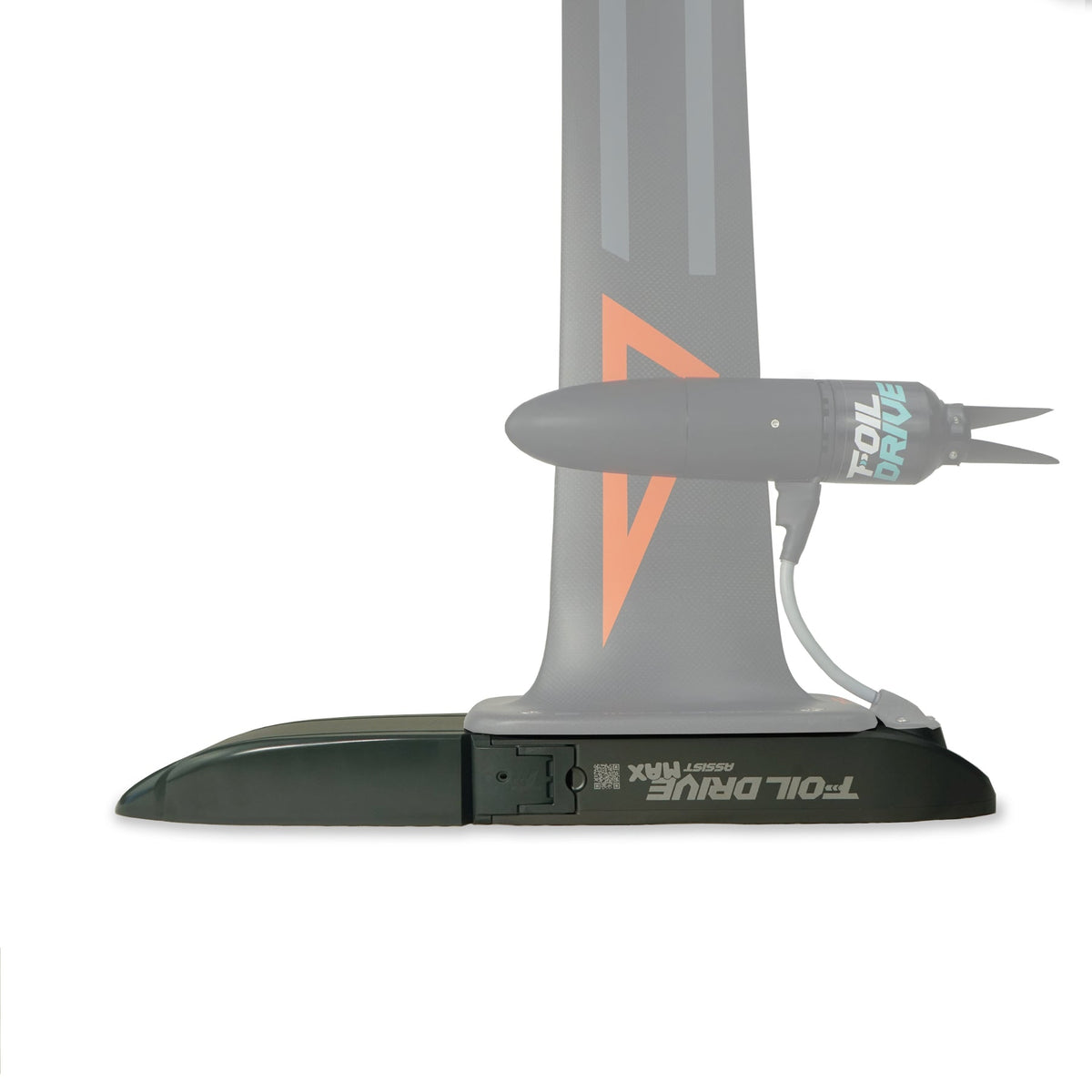

INSTALL ON ANY FOILBOARD & MAST

Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.

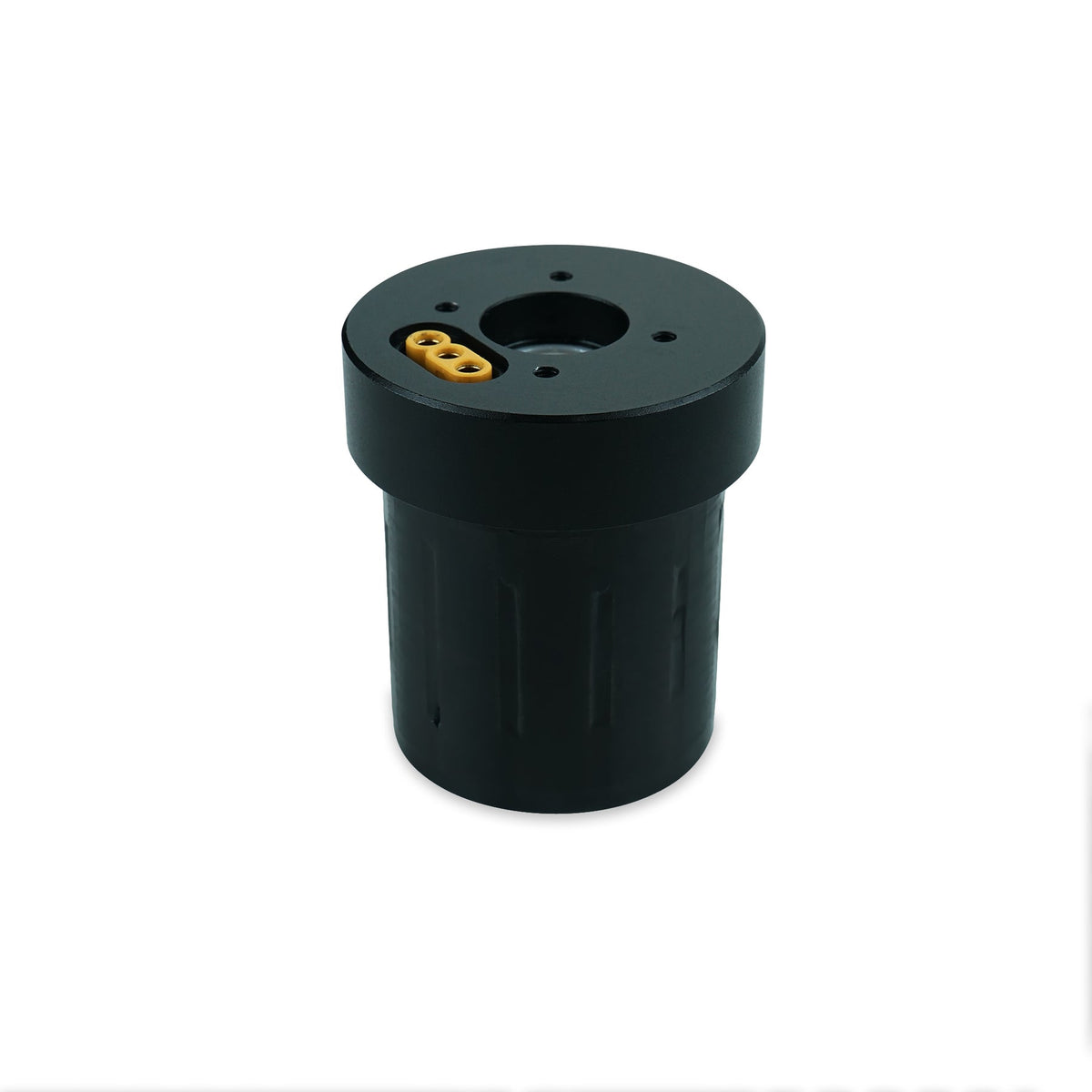

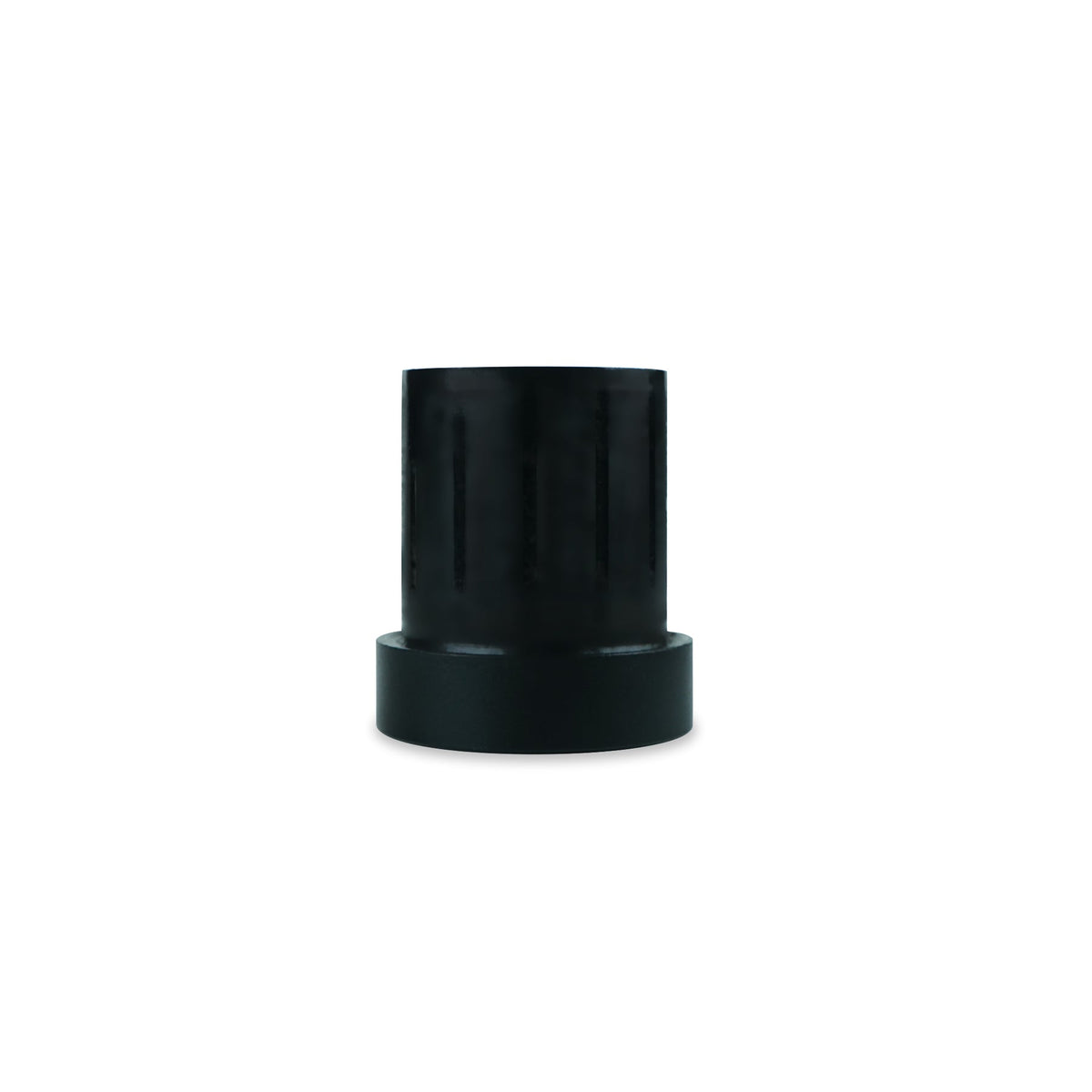

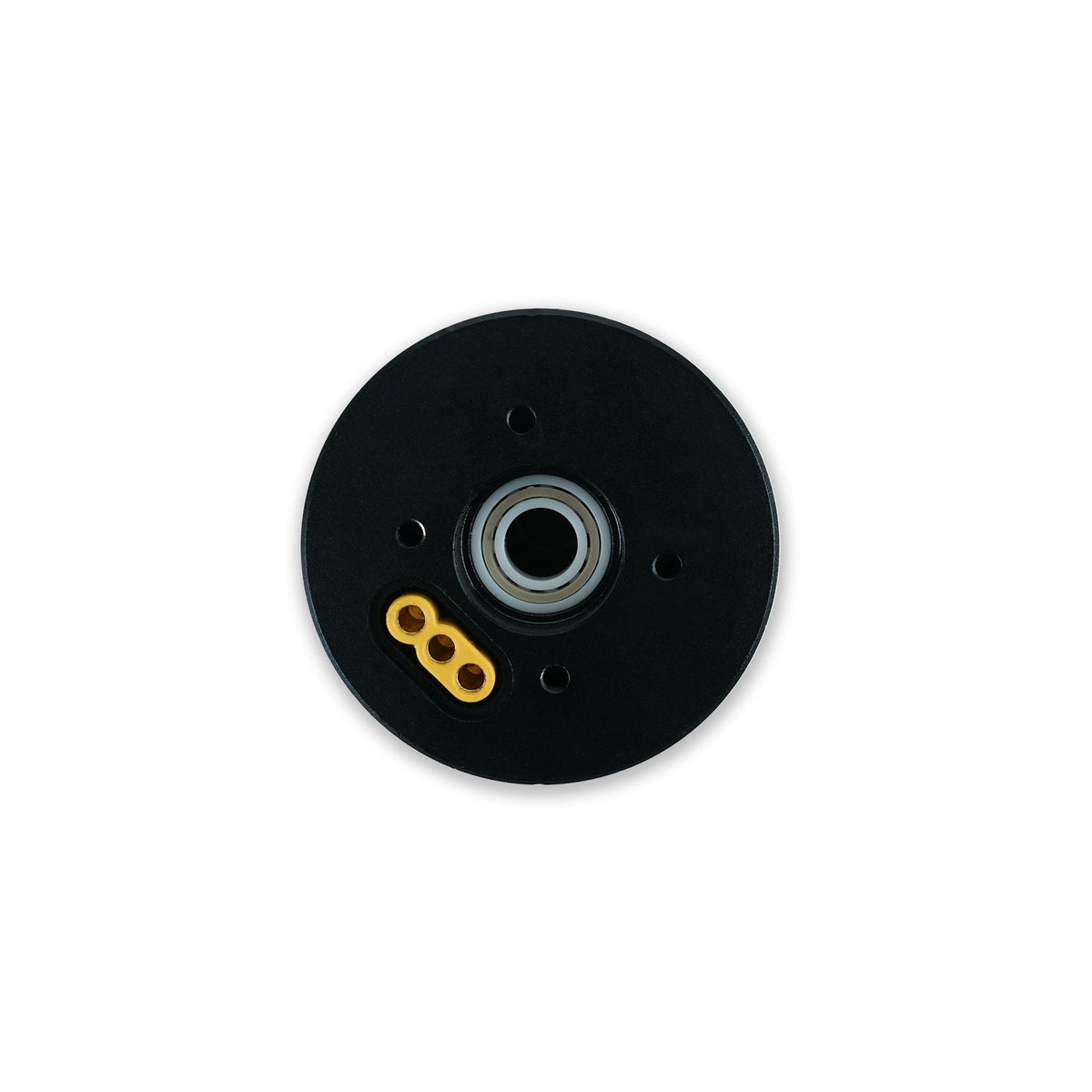

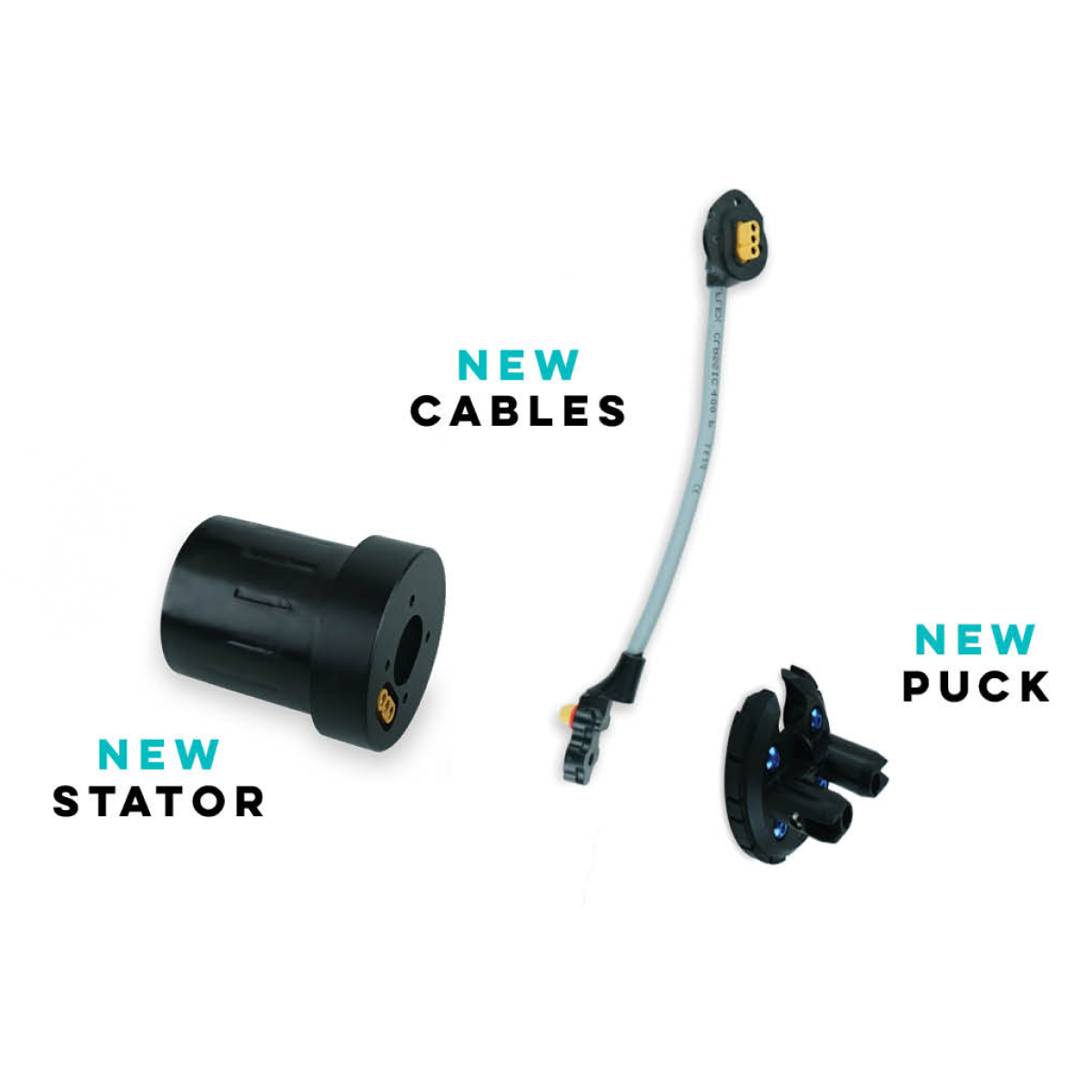

NEW V2 MOTOR

The redesigned v2 Motor features a sleeker, more hydrodynamic design. With a 10mm extension to the Motor, it now accommodates a motor plug and offers added versatility with customisable Motor Cable lengths.

REMOVABLE CABLES

The v2 Motor Plug allows modularity with a quick and simple connection between your Foil Drive unit and your v2 Motors enabling the ultimate flexibility.

When used in conjunction with the Foil Drive Universal Motor Pods and Mast Adaptors, this motor is compatible with almost any foil mast on the market!

PERFORMANCE UPGRADE - HIGH POWER

Take your foiling experience to the next level with the High Power Motor, the ultimate upgrade for Gen2 systems. This advanced motor is designed for riders who demand more torque, thrust, and runtime, delivering peak performance without compromising compatibility. Through improved efficiency, riders can experience up to 19% more runtime.

Key Benefits of the High Power Motor

Meticulously engineered to push your fun on the water.

Unmatched Low-End Torque: Perfect for heavier riders or smaller boards or foils, the High Power Motor delivers effortless take-offs with power to spare.
Longer Runtimes: Thanks to its superior torque, you’ll need less throttle input, giving you significantly extended ride times.
Increased Thrust: Feel the extra push when you need it most—more thrust means more versatility across all foiling disciplines.
Smoother, Quieter Performance: Enjoy a seamless ride with enhanced efficiency and reduced noise.

Paired with the MAX High Power Battery, riders gain the 19% added capacity of the battery. This means, with the High power Battery AND the High power Motor, riders can experience 40-45% more runtime!

Propeller Options

2 Blade Prop

Looking for more speed on the water? The Two Blade Propeller is the standard setup for Foil Drive Assist systems, designed for maximum velocity and efficiency.

Compared to the optional Three Blade Propeller, this setup offers:

Increased top-end speed

Enhanced efficiency at higher RPMs

Lighter weight for improved responsiveness

Streamlined design for reduced drag

Perfect for riders who prioritize speed and efficiency, especially those using higher-volume boards, larger foils, or with a lighter build.

3 Blade Prop

Need more torque for easier takeoff? The Three Blade Propeller Hub is an optional upgrade for Foil Drive Assist PLUS units, designed to boost low-end thrust—perfect for heavier riders, smaller boards, or higher-aspect foils.

Compared to the standard Two Blade Propeller, this setup offers:

Increased low-end thrust

More torque at lower RPM, reducing cavitation under high load

Better performance when breaching the surface

A smoother, quieter ride

Ideal for riders pushing the limits of weight, board size, or foil efficiency.

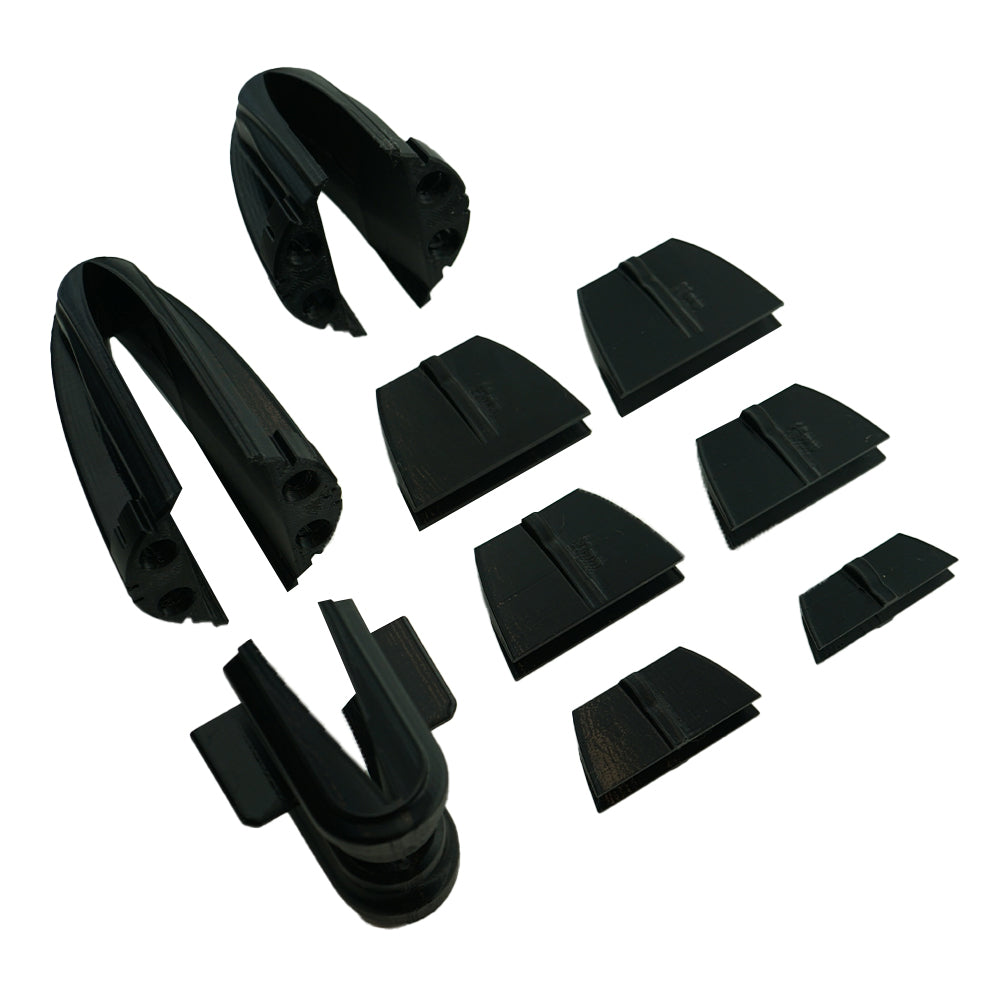

UNIVERSAL MAST ADAPTOR

Now included in all Foil Drive kits

The unique design features a number of six sized "keys" that are to be installed into the front of the adaptor to allow for fitment of all different sizes and shapes of mast. The user will need to fit and test the different keys to find the correct one for their mast and the taper of the position you would like to mount your motor.

MAX High Power Battery

Utilizing cutting-edge battery technology, this powerhouse packs 19% more capacity into the same compact size as the current MAX Power Battery, just 100g heavier. With 19% added capacity of the Battery, PLUS the added efficiency of the High Power Motor (sold separately), combined a rider can see up to 40-45% runtime increase! (Nose Cone A)

Volts: 40V

Energy: 594 Wh

Battery Weight: 2.7kg (5.95lbs)

Weight (Installed): 4.6kg (10.14lbs)

Dimensions (Installed):

L525 x W125 x H50mm

Dimensions (Battery Only):

L420 x W75 x H40mm

MAX Sport High Power Battery

The lighter High Power option for the Assist MAX, the MAX Sport High Power Battery packs added capacity into the smaller Sport Battery size. It is designed for riders who want the lighter Nose Cone B setup with the added performance of High Power battery technology. This battery must be used with the Assist MAX, Nose Cone B.

Volts: 40V

Energy: 396 Wh

Battery Weight: 1.9kg (4.18lbs)

Weight (Installed): 3.5kg (7.7lbs)

Dimensions (Installed):

L415 x W125 x H50mm

Dimensions (Battery Only):

L290 x W75 x H40mm

MAX Sport Battery

The smaller, lighter MAX battery, with a reduce weight and runtime. This battery must be used with the Assist MAX, Nose Cone B.

Volts: 40v

Energy: 332.64Wh

Battery Weight: 1.8kg (3.9lbs)

Weight (Installed): 3.4kg (7.4lbs)

Dimensions (Installed):

L415 x W125 x H50mm

Dimensions (Battery Only):

L290 x W75 x H40

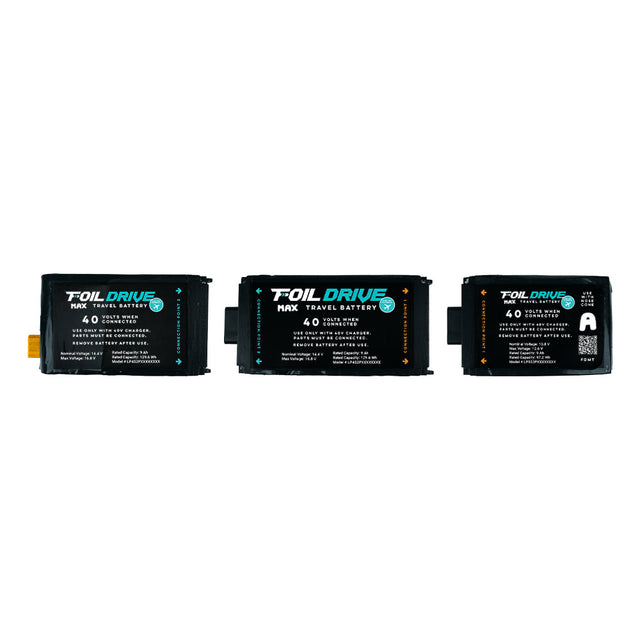

MAX Travel Battery

The Foil Drive MAX Travel Battery allows you to travel with your gear to your favorite riding destination and take a battery with you! This battery must be used with the Assist MAX, Nose Cone A.

Volts: 39.6 v

Energy: 356.6Wh

Battery Weight: 2.65kg (5.84lbs)

Weight (Installed): 4.55kg (10.04lbs)

Dimensions (Installed):

L525 x W125 x H50mm

Dimensions (Battery Only):

L420 x W75 x H40mm

Package Includes:

1x Base Kit (SKU: 9361123000287)

(See included parts below in "Included Estentials")

1x Motor Option - One of the following:

High Power V2 Motor w/ 20cm Cable & 2 Blade (SKU: FD25HPMC-235)

OR

Armstrong Integrated Mast - 185mm (SKU: 4897115087240)

Foil Drive High Power Integrated Mast Motor w/ 3 Blade (SKU: FD25HPMIM-255)
Armstrong Foil Drive Plate Bolts Set - M7x80mm+T-Nuts (SKU: 4897115085444)

OR

Armstrong Integrated Mast - 650mm (SKU: 4897115087257)

Foil Drive High Power Integrated Mast Motor w/ 3 Blade (SKU: FD25HPMIM-255)
Armstrong Foil Drive Plate Bolts Set - M7x80mm+T-Nuts (SKU: 4897115085444)

1x Foil Drive MAX Battery -One of the following:

MAX Sport (SKU: FD24SPRTBATT-102)
MAX Sport High Power (SKU: 9361123003431)
MAX High Power (SKU: FD25PWRBATT-213)
MAX Travel (SKU: FD25BATTTRVL-188)

(Optional): 1x V2 Motor Cable 20cm cable is included, with an exception of integrated masts.

12cm (SKU: FD25V2MC186-01)
15cm (SKU: FD25V2MC186-02)
25cm (SKU: FD25V2MC186-04)
60cm (SKU: FD25V2MC186-05)
70cm (SKU: FD25V2MC186-06)

(Optional): 1x 3 Blade Propeller Upgrade (SKU: FD24PROP-3089)

NOTE: Armstrong integrated motor includes 3 blades.

Included Estentials:

Foil Drive Assist MAX Electronics Box w/ V2 Latches
Universal Mast Adaptor
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v3 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp

4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag

4x M8 Locking Tee Nuts
4x M6 Locking Tee Nuts
4x M3 x 20mm Bolts for Locking Tee Nuts
2x M3 x 16mm Latch Locking Bolts
