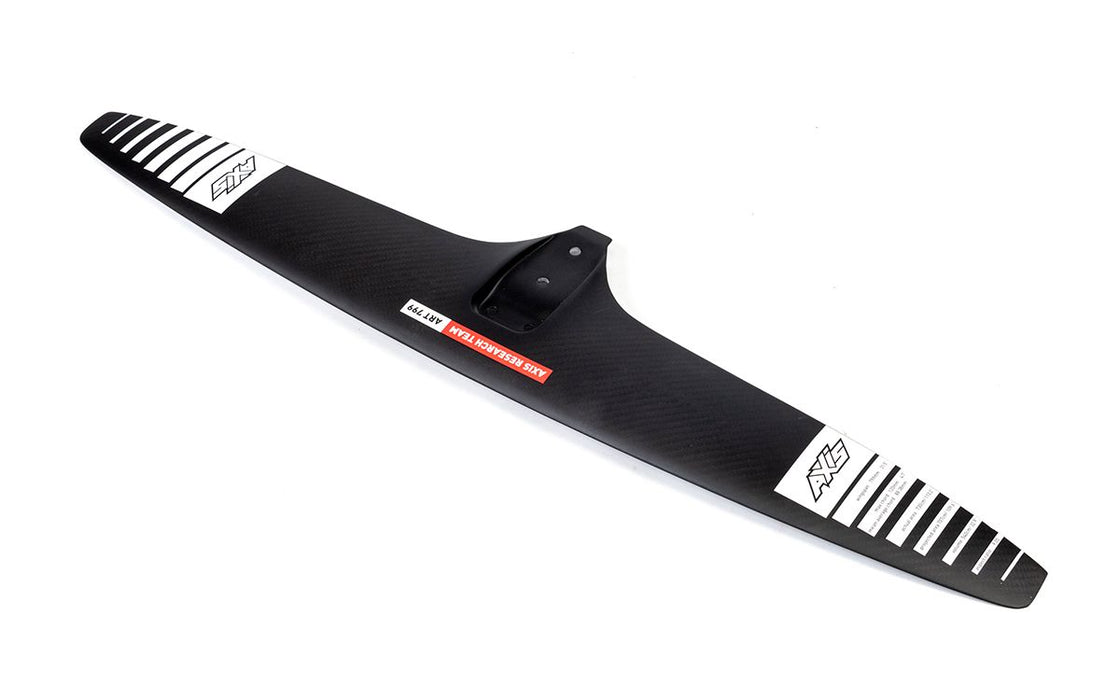

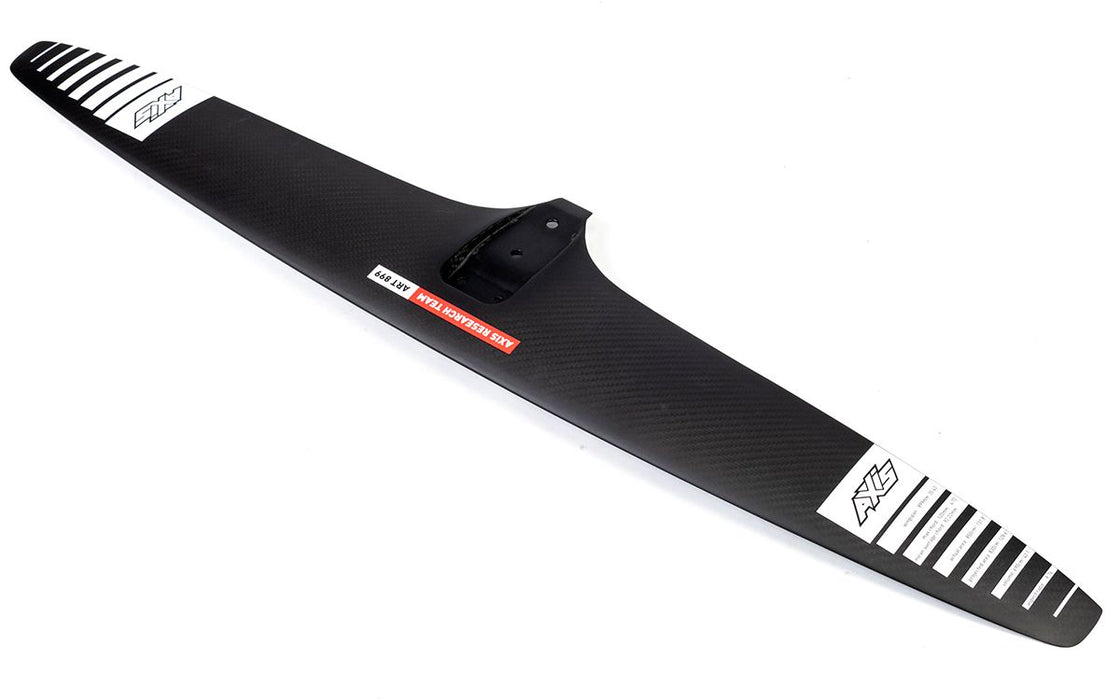

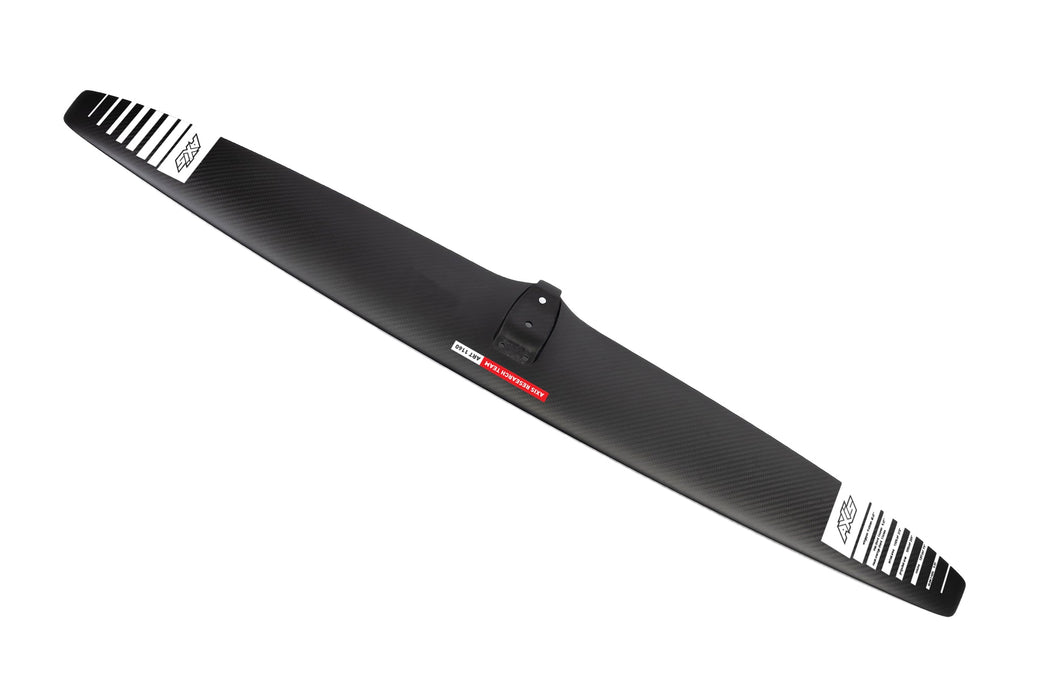

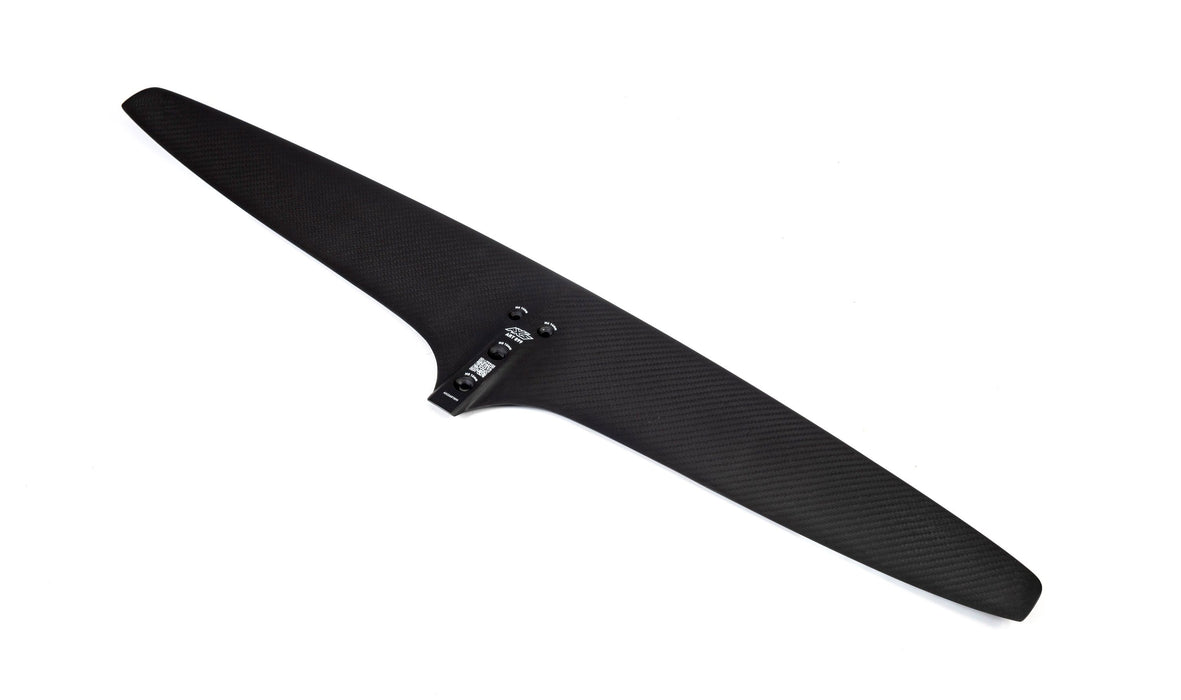

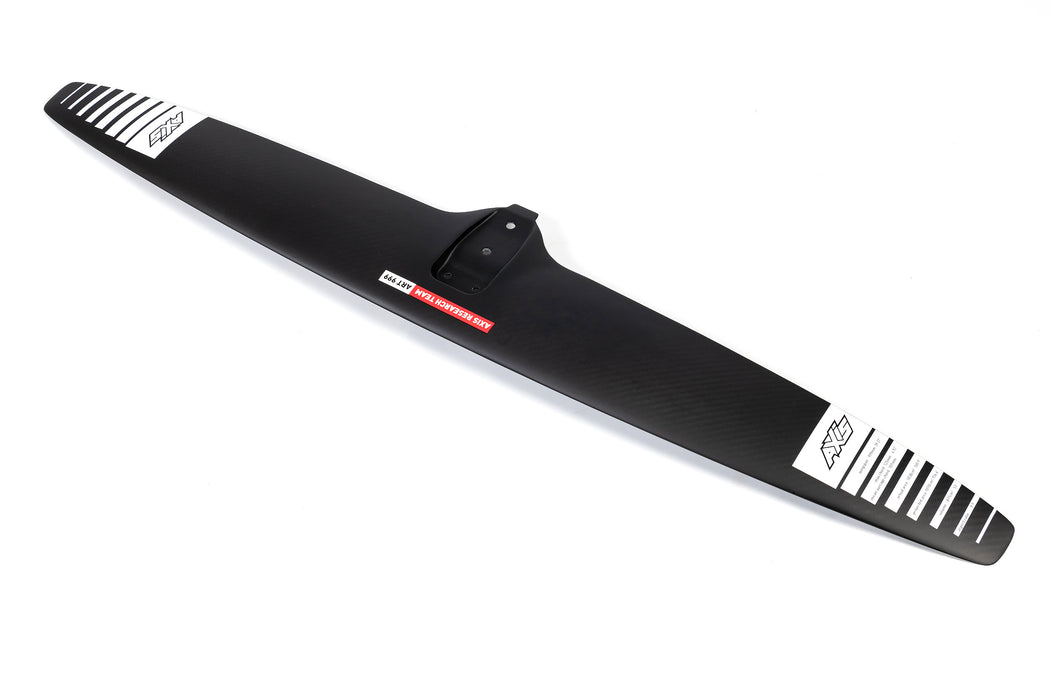

Axis Research Team (ART) Front Wing

Name: Axis Research Team (ART) Front Wing
Brand: Axis
SKU: AX22ART1099
Price: 453.00 USD
Availability: InStock

Axis • SKU AX22ART1099

Save 40%

$755.00

$453.00

All ART wings compatible with black fuselage.

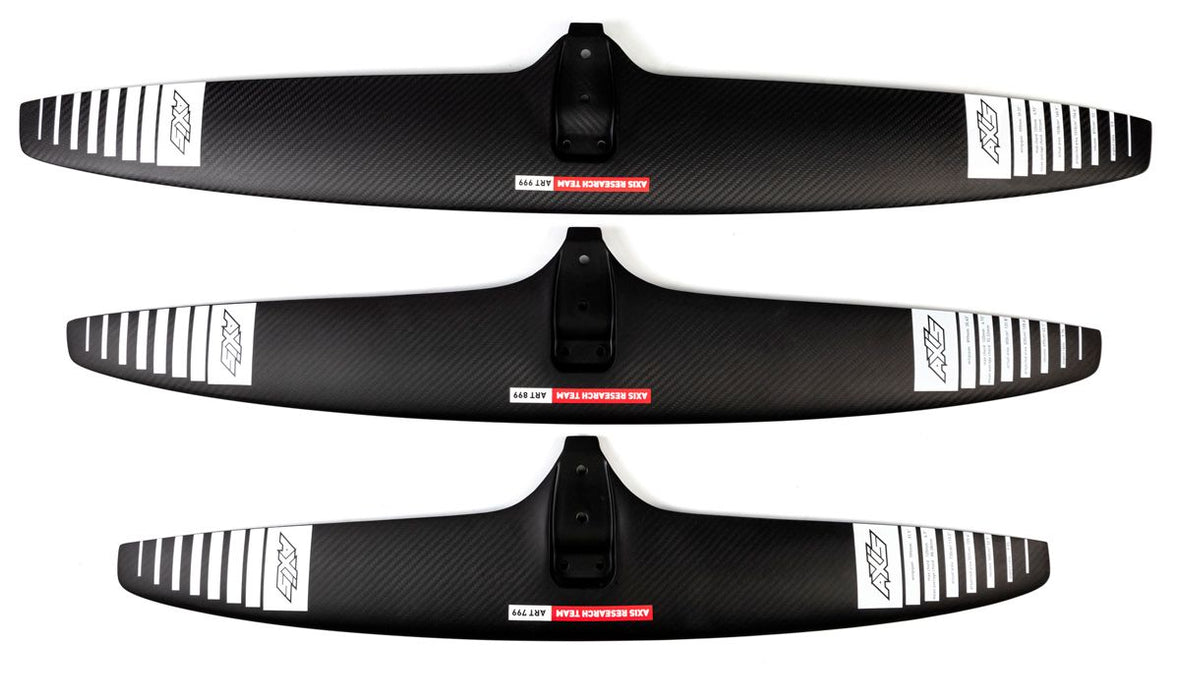

Size or Type

ART 1099

ART 999

ART 899

ART 799

ART 699

Quantity

Free Shipping

Free shipping on $100+ Excludes boards and oversized items. Shipping Details →

Backed by REAL

30-day Returns + Exchanges Full tracking on every order Details & FAQs →

Need help choosing gear?

Talk to a REAL Pro who rides it.
Located in Cape Hatteras. No bots.

Description

From Axis

Spread across far flung corners of the globe, a group of obsessed and in some cases eccentric foilers with highly creative and technical minds, are constantly contributing ideas and feedback to AXIS headquarters.

They may not be the hottest performing, the best looking, the most well-known foilers out there – but they know their foiling and we love them for it. They’re the Axis Research Team (ART).

Recommended use: Speed, high performance winging, prone, tow surf, kite. Anything you want to do with the ultimate in glide, pumping and speed.

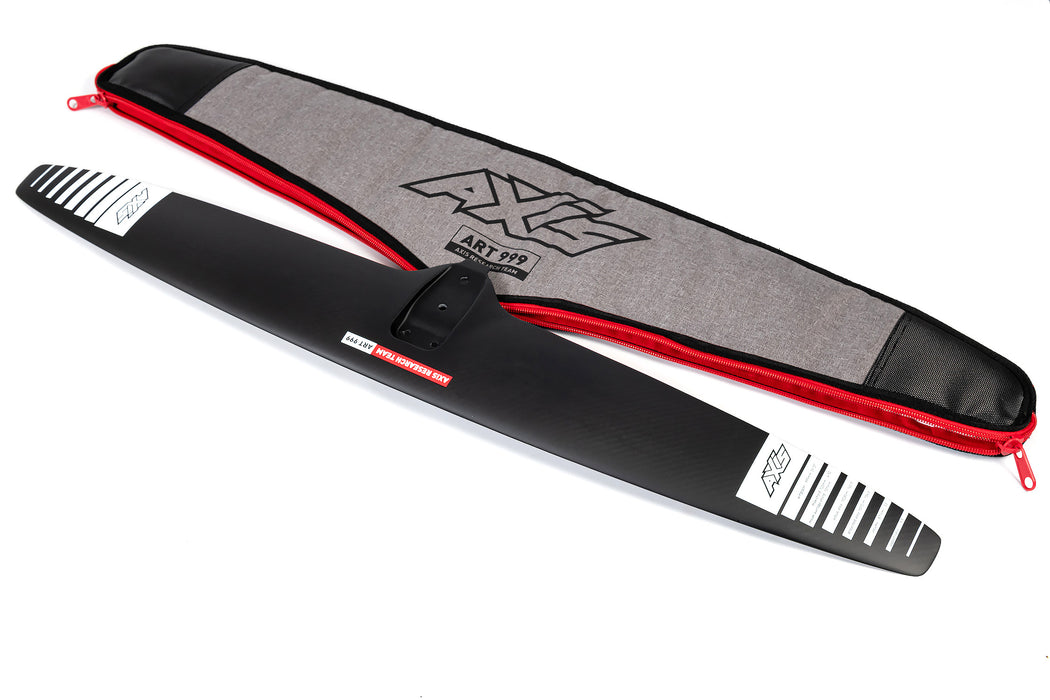

Package Includes

Wing
Wing Cover

Hardware Sold Separately

ART 699 Carbon Wing Technical Data

WINGSPAN: 699 mm / 27.5 inches
MAX CHORD: 100mm, 3.92 inches
MEAN AVERAGE CHORD: 77.6mm
ASPECT RATIO: 9.0
ACTUAL AREA 556 square cm / 86.2 square inches
PROJECTED AREA: 543 square cm / 84.2 square inches
VOLUME: 412 cubic cm / 25.1 cubic inches

ART 799 Carbon Wing Technical Data

WINGSPAN: 799 mm / 31.5 inches
MAX CHORD: 120mm, 4.72 inches
MEAN AVERAGE CHORD: 88.38mm
ASPECT RATIO: 9.05
ACTUAL AREA 730 square cm / 113.2 square inches
PROJECTED AREA: 707 square cm / 109.6 square inches
VOLUME: 540 cubic cm / 32.9 cubic inches

ART 899 Carbon Wing Technical Data

WINGSPAN: 899 mm / 35.43 inches
MAX CHORD: 120mm, 4.72 inches
MEAN AVERAGE CHORD: 92.22mm
ASPECT RATIO: 9.76
ACTUAL AREA 850 square cm / 131.8 square inches
PROJECTED AREA: 830 square cm / 128.6 square inches
VOLUME: 690 cubic cm / 42.1 cubic inches

ART 999 Carbon Wing Technical Data

WINGSPAN: 999 mm / 39.37 inches
MAX CHORD: 125mm, 4.92 inches
MEAN AVERAGE CHORD: 101mm
ASPECT RATIO: 9.9
ACTUAL AREA 1038 square cm / 160.9 square inches
PROJECTED AREA: 1010 square cm / 156.6 square inches
VOLUME: 871 cubic cm / 53 cubic inches

ART 1099 Carbon Wing Technical Data

WINGSPAN: 1100 mm / 43.31 inches
MAX CHORD: 130mm, 5.12inches
MEAN AVERAGE CHORD: 103.8mm
ASPECT RATIO: 10.6
ACTUAL AREA 1144 square cm / 177.3 square inches
PROJECTED AREA: 1142 square cm / 177 square inches
VOLUME: 905 cubic cm / 55.2 cubic inches

Explore Axis

AXIS Foils delivers high-performance, modular foil systems designed to grow with you—from your first flights to advanced riding. Known for precision engineering and interchangeable components, AXIS makes it easy to fine-tune your setup and progress across any foiling discipline.

Shop All Axis

34 items ready to ship

Loving the ART 1099

Proning foiling with the ART 1099 - Crazy short advanced fuse and 325p tail is EZ! I'm 220lbs/100kg and this is my go to foil for thigh to chest waves now. It has a super predictable take off and handling and rockets on the pump. Couldn't ask for anything more.

ART 799 is a winner for kiting

I've been kite foiling with this wing and it is super fun. Slips effortlessly through the water and has lots of lift, goes upwind like a dream. I have mine paired with the ultrashort fuselage and progressive 350 rear wing, and it's incredibly surfy when you want to slash a wave, but the wingspan makes for a very controlled ride when blasting upwind. Jumps are effortless, it slides in and out of the water like a knife with no resistance. Not a foil for the absolute beginner, but still easy and forgiving to ride considering the high aspect ratio.

ART 999 Review

I rode the 999 in 20mph of wind on an 85L board and a 5M wing and it was great. The Axis line of foils has a lot of lift so you want to place your mast back further in your mast track. The wing was really stable, turned really well for an HA wing and pumped like a dream. These kind of designs are what makes Axis the best bang for your buck when it comes to aluminum systems.
